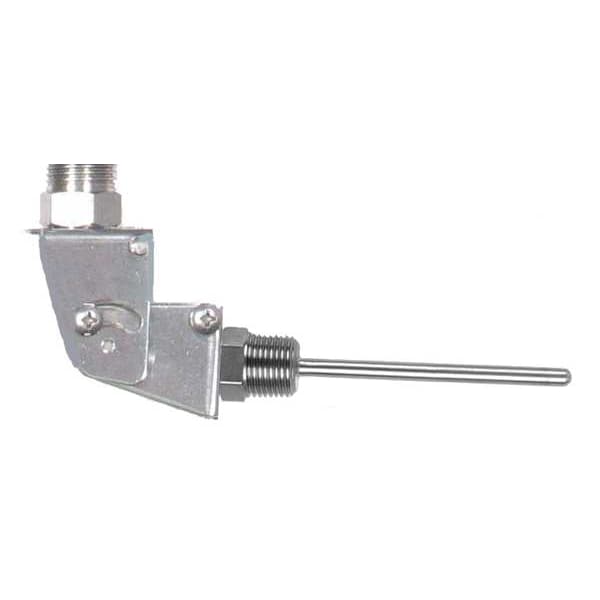

Wahl Immersion Temperature Probe, RTD, 6 In L DST501A22106X - main

Immersion Temperature Probe, RTD, 6 In L

  • Mfr # DST501A22106X

  • Zoro # G2309119

product price: $281.99
/ea
Free Shipping & Returns

Key Features

Probe Length
6 in
Probe Temp. Measuring Element
100 Ohm RTD
Calibration Certificate
NIST
Temp. Range (C)
-60 Degrees to 204 Degrees
Probe Wire Length
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DST501A22106X
Zoro #
G2309119
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
6 in
Probe Wire Length
3 in
Probe Dia.
1/4 in
Manufacturers Warranty Length
2 yr
Cable Length
3 in
Probe Diameter
0.25 in
Manufacturer Warranty Length
2 yr
Probe Size
1/4 in x 6 in

Details

Item
Immersion Temperature Probe
Probe Temp. Measuring Element
100 Ohm RTD
Calibration Certificate
NIST
Temp. Range (C)
-60 Degrees to 204 Degrees
Accuracy
+/-0.15 Degrees C
Probe Connection Type
Bare Wire
Primary Measuring Element
RTD
Includes
All Angle, NPT Process Connection
Probe Material
318 Stainless Steel
Probe Connector
Bare Wire
For Use With
Wahl Digi-Stem Meter
Probe Contact Material
316 Stainless Steel
Use
Air or Liquids
Temp. Range (F)
-76 Degrees to 400 Degrees
Temperature Measuring Element
RTD
Process Connection
1/2 in NPT
Fitting Type
1/2 in NPT
Sensor Type
RTD
For Air
No
Number of Wires
4-Wire
Includes Thermowell
No
Probe Sheath Material
316L Stainless Steel
Resistance
100 ohm
Temperature Range
-76 Degrees to 400 Degrees F/-60 Degrees to 204 Degrees C
Connector Type
Bare Wire
For Liquids and Gels
Yes
Maximum Temperature C
204 Degrees C
Maximum Temperature F
400 Degrees F
Process Mounting
1/2 in NPT
Minimum Temperature F
-76 Degrees F
Includes Signal Converter
No
Minimum Temperature C
-60 Degrees C
Response Time
2 sec
For Gases
Yes
RTD Type
4-Wire 100 ohm
Probe Bend
Adjustable
For Solids
No
For Application
Food and Beverage, Pharmaceutical, Process
Maximum Temperature °C
204 Degrees C
Maximum Temperature °F
400 Degrees F
Minimum Temperature °F
-76 Degrees F
Minimum Temperature °C
-60 Degrees C
Maximum Temperature °C
204 Degrees C
Minimum Temperature °C
-60 Degrees C
Maximum Temperature °F
400 Degrees F
Minimum Temperature °F
-76 Degrees F

Description

Immersion Temperature Probe, RTD Type 4-Wire 100 ohm, For Application Food and Beverage, Pharmaceutical, Process, Number of Wires 4-Wire, Bare Wire, Cable Material Not Applicable, Cable Length 3 in, -76 Degrees to 400 Degrees F/-60 Degrees to 204 Degrees C
