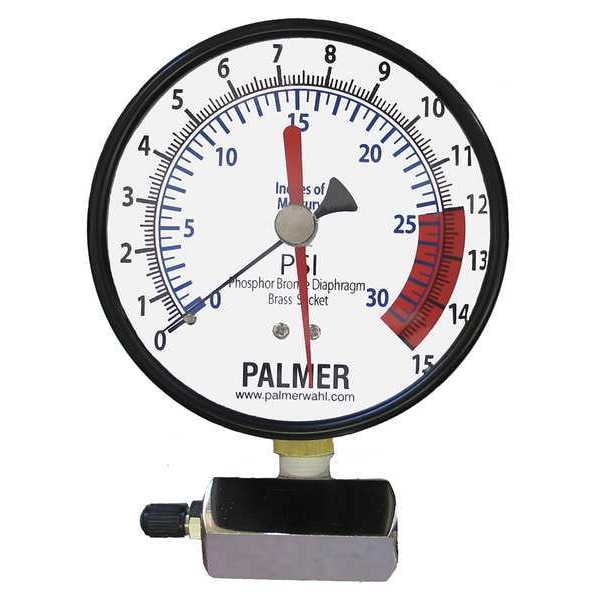

Wahl Pressure Gauge, 0 to 15 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material 40KBDLA15#Hg - main

Pressure Gauge, 0 to 15 psi, 4 in Dial, 3/4 in NPT, Bottom Location, Steel Case Material

  • Mfr # 40KBDLA15#Hg

  • Zoro # G3638835

product price:  $129.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
3/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40KBDLA15#Hg
Zoro #
G3638835
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
3/4 in
Dial Size (In.)
4 in
Manufacturer Warranty Length
1 yr
Case Diameter
4 in
Nominal Dial Size
4 in
Gauge Case Diameter
4 in
Nominal Dial Diameter
4 in

Details

Item
Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Water Pressure Testing, HVAC/R, Low Pressure, Residential
Gauge Case Material
Steel
Series
40KB
Lens Material
Plastic
Primary Pressure Range
0 to 15
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
Smallest Graduation
1/10th psi or 1/2 in Hg
Gauge Primary Range Smallest Graduation
0.1
Case Color
Painted Black
Gauge Application
Test For Leaks in Residential and Commercial Gas, Air and Water Lines, Test For Leaks in Drain, Waste and Vent Lines, Test For Low Pressure Plumbing Lines
Gauge Secondary Range Values
0 to 30
Includes
Schrader Air Valve
Gauge Special Options
Maximum Reading Pointer
Calibration Certificate Included
No
Features
Dual Scale (psi/in Hg) Dual Color, Equipped with Set Hand, Heavy Duty Construction Solid Brass Internal Body, Heavy Duty Gear Movement, Phosphor Bronze Diaphragn Internals, Plastic Lens
Socket Material
Brass
Case Material
Steel
Standards
ASME
Connection Type
MNPT
Primary Scale Minor Graduations
0.1
Sensor Type
Bourdon Tube
Dial Color
White
Compatible Process Media
Air, Gas, Water
Accuracy Grade
ASME B40.100 Grade 1A
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 30
Sensor Material
Bronze
Secondary Scale Units
in Hg
Primary Pressure Scale Color
Black
Secondary Pressure Scale Color
Blue
Pressure Gauge Type
Gas Line Pressure Test Kit
Accuracy Scale
Full Scale
Scale Type
Dual
Case Finish
Painted
Freeze Resistant Movement
No
Pointer Characteristics
Set hand, Set Pointer for Leak Off
Ambient Operating Temperature Range
-4 Degrees to 160 Degrees F (-20 Degrees to -60 Degrees C)
Secondary Scale Minor Graduations
0.5
Process Connection Gender
Female
Operating Temperature Range
-4 Degrees to 160 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Color
Black
Secondary Scale Color
Blue
Operating Temperature - Minimum
-4 Degrees F
Process Media Temperature - Minimum
-4 Degrees F
Secondary Scale Vacuum Measurement - Maximum
30 in Hg
Operating Temperature - Maximum
160 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Pressure Measurement - Maximum
15 psi
Gauge Case Finish
Painted

Description

Gas Test Gauge, 4 In, Connection Size 3/4 In NPT, Connection Location Stem Mount Lower, Accuracy (%) 1%, Case Material Steel, Display 4 In (100mm) White Aluminum With Black And Blue Markings, Display Units PSI or Hg, Resolution 1/10th PSI or 1/2 In Hg, Operating Temp. Range (F) (-4F) to 160F, Series 41 KB, Includes Hex Body And Schrader Air Valve, Manufacturers Warranty Length 1 Year, Range 15 PSI-30 In Hg

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
