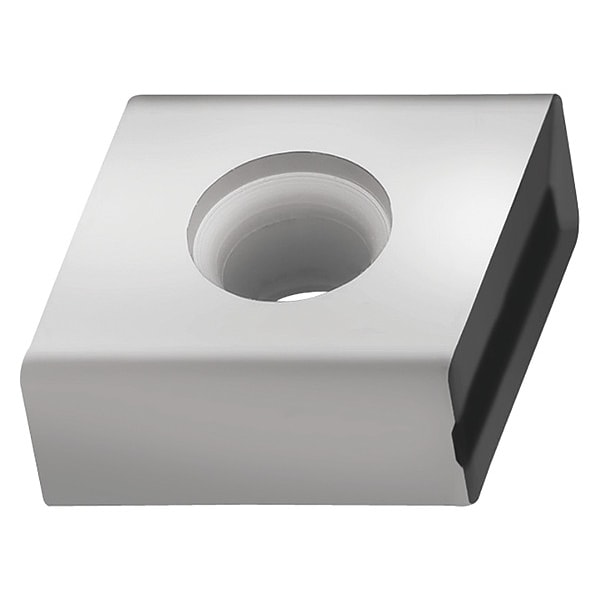

Diamond Milling Insert, 0.3540 in, CNHU, 1/32 in
Mfr # CNHU0805PPN-D57T WKP25S
Zoro # G2885017
product price: $46.09
/ea
Sold in multiples of 10 for $460.90
Key Features
Insert Style
CNHU
Inscribed Circle
0.3540 in
Insert Size
0805
Chip-Breaker
Yes
Corner Radius
1/32 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CNHU0805PPN-D57T WKP25S
Zoro #
G2885017
UPC #
-
Country of Origin
Germany
Dimensions
Insert Size
0805
Corner Radius
1/32 in
Width
0.3540"
Thickness
0.1970 in
Cutting Edge Length
8.00mm
Details
Item
Diamond Milling Insert
Insert Style
CNHU
Inscribed Circle
0.3540 in
Chip-Breaker
Yes
Rake
Negative
ISO Number
CNHU0805PPN-D57T
Manufacturer Grade
WKP25S
Hole Type
With Hole
Clearance Angle
0 Degrees
Included Angle
80 Degrees
Primary Material Application ISO Code
K, P
Chip-Breaker Code
D57T
Material - Machining
Carbide
Number of Cutting Edges
2
Coating Process
CVD
Primary Material Application
Cast Iron, Steel
ANSI Code
CNHU0805PPN-D57T
Shape
Rhombic
Finish - Machining
TiCN+Al2O3+(TiCN)
Description
Diamond Milling Insert, Chip-Breaker Code D57T, Inscribed Circle 0.3540 in, TiCN+Al2O3+(TiCN), ANSI Code CNHU0805PPN-D57T, Clearance Angle 0 Degrees , Coating Process CVD
