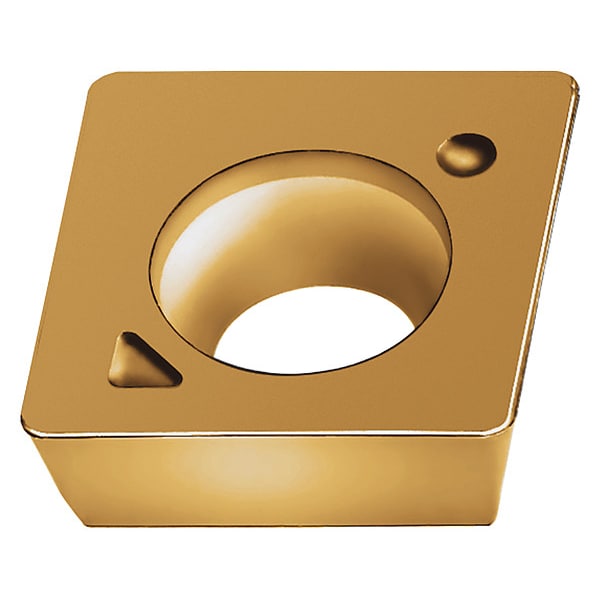

Diamond Milling Insert, 0.4720 in, MPHW, 1/32 in
Mfr # MPHW120408-A57 WKP25S
Zoro # G2882445
product price: $23.75
/eaSold in multiples of 10 for $237.50
Key Features
Insert Style
MPHW
Inscribed Circle
0.4720 in
Insert Size
120408
Chip-Breaker
Yes
Corner Radius
1/32 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MPHW120408-A57 WKP25S
Zoro #
G2882445
UPC #
-
Country of Origin
Germany
Dimensions
Insert Size
120408
Corner Radius
1/32 in
Width
1/2"
Thickness
3/16 in
Cutting Edge Length
12.70mm
Details
Item
Diamond Milling Insert
Insert Style
MPHW
Inscribed Circle
0.4720 in
Chip-Breaker
Yes
Rake
Positive
ISO Number
MPHW120408-A57
Clearance Angle
11 Degrees
Finish - Machining
TiCN+Al2O3+(TiCN)
Coating Process
CVD
Chip-Breaker Code
A57
Number of Cutting Edges
2
Included Angle
86 Degrees
Primary Material Application ISO Code
K, P
ANSI Code
MPHW120408-A57
Material - Machining
Carbide
Hole Type
With Hole
Shape
Diamond
Manufacturer Grade
WKP25S
Primary Material Application
Cast Iron, Steel
Description
Diamond Milling Insert, Chip-Breaker Code A57, Inscribed Circle 0.4720 in, TiCN+Al2O3+(TiCN), ANSI Code MPHW120408-A57, Clearance Angle 11 Degrees , Coating Process CVD
