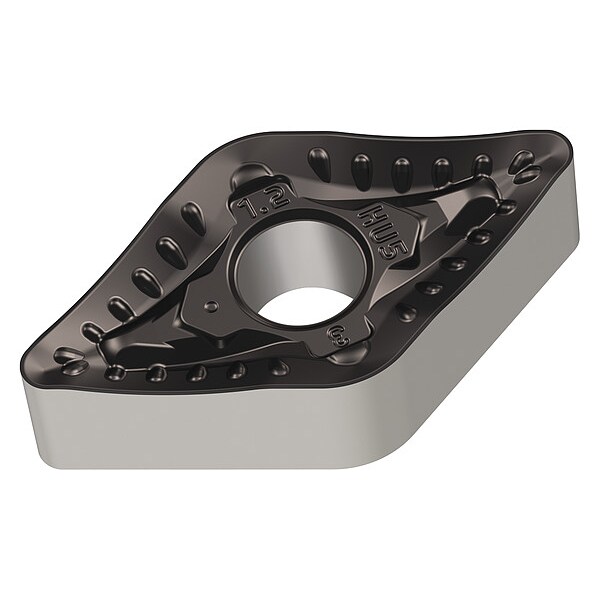

Diamond Turning Insert, 4, DNMM, 3
Mfr # DNMM150612-HU5 WMP20S
Zoro # G2906227
product price: $23.45
/eaSold in multiples of 10 for $234.50
Key Features
Insert Style
DNMM
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
3
Rake
Negative
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DNMM150612-HU5 WMP20S
Zoro #
G2906227
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
3
Through Hole Inside Dia.
13/64"
Cutting Edge Length
15.50mm
Thickness
4
Details
Item
Diamond Turning Insert
Insert Style
DNMM
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
DNMM150612-HU5
Cutting Direction
Neutral
Manufacturer Grade
WMP20S
ANSI Code
DNMM443-HU5
Coating Process
CVD
Included Angle
55 Degrees
Shape
Diamond
Clearance Angle
0 Degrees
Chip-Breaker Code
HU5
Measurement System
Fractional Inch
Material - Machining
Carbide
Finish - Machining
TiCN+Al2O3+(TiCN)
Description
Diamond Turning Insert, Chip-Breaker Code HU5, Inscribed Circle 1/2 in, TiCN+Al2O3+(TiCN), ANSI Code DNMM443-HU5, Clearance Angle 0 Degrees , Coating Process CVD
