  11. Diamond Turning Insert, Diamond, 3, VNMG, 1, Carbide

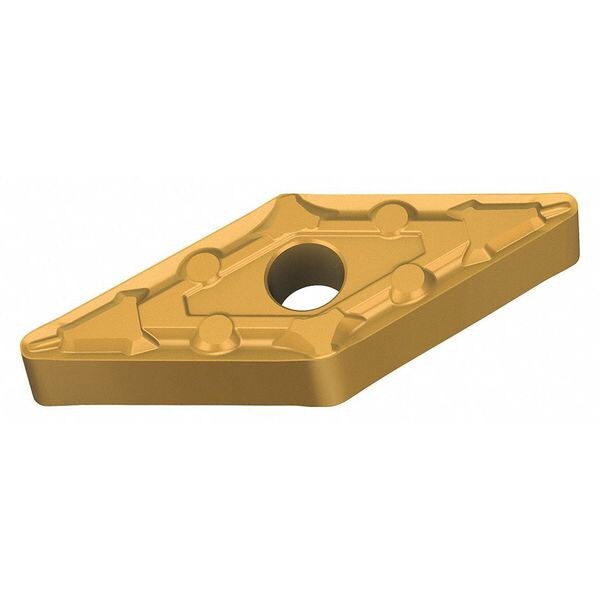

Walter Diamond Turning Insert, Diamond, 3, VNMG, 1, Carbide VNMG160404-FV5 WPV10 - main

Diamond Turning Insert, Diamond, 3, VNMG, 1, Carbide

  • Mfr # VNMG160404-FV5 WPV10

  • Zoro # G4812652

product price: $12.89
/ea
Sold in multiples of 10 for $128.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG160404-FV5 WPV10
Zoro #
G4812652
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
331
Corner Radius
1
Nose Radius
0.016"
Insert Thickness
0.1880"
Mounting Hole Dia.
0.150"
Thickness
3
Depth of Cut
0.20 to 1.50mm
Cutting Edge Length
16.00mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WPV10
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
VNMG160404-FV5 WPV10
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Coating
CVD
Mounting Style
Clamp
For Use With
Toolholders, Boring Bars
No. of Edges
4
ANSI Number
VNMG331-FV5 WPV10
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Relief Angle
0 Degrees
Manufacturer Grade
WPV10
ANSI Code
VNMG331-FV5 WPV10
Cutting Application
Turning
Primary Material Application
Steel
Primary Material Application ISO Code
P
Included Angle
35 Degrees
Number of Cutting Edges
4
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Finish - Machining
TiCN+Al2O3+TiN
Chip-Breaker Code
FV5
Shape
Rhombic
Clearance Angle
0 Degrees
Material - Machining
Carbide
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code FV5, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN, ANSI Code VNMG331-FV5 WPV10, Clearance Angle 0 Degrees
