  11. Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

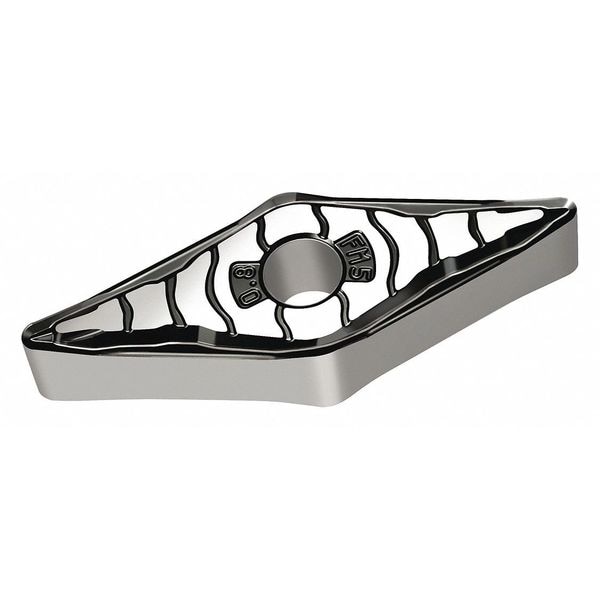

Walter Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide VNMG160408-FM5 WSM10S - main

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

  • Mfr # VNMG160408-FM5 WSM10S

  • Zoro # G4812698

product price: $31.75
/ea
Sold in multiples of 10 for $317.50

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG160408-FM5 WSM10S
Zoro #
G4812698
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.031"
Insert Thickness
0.1880"
Mounting Hole Dia.
0"
Cutting Edge Length
16.00mm
Depth of Cut
0.40 to 1.50mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WSM10S
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
VNMG160408-FM5 WSM10S
Coating
PVD
No. of Edges
4
ANSI Number
VNMG332-FM5 WSM10S
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Hardened (H) Compatibility
No
Mounting Style
Clamp
Super Alloy (S) Compatibility
Yes
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Relief Angle
0 Degrees
Cutting Application
Turning
Measurement System
Fractional Inch
Finish - Machining
TiAlN+Al2O3+Al
Material - Machining
Carbide
Number of Cutting Edges
4
Insert Holding Type
Straight Hole
Shape
Rhombic
Chip-Breaker Code
FM5
ANSI Code
VNMG332-FM5 WSM10S
Included Angle
35 Degrees
Clearance Angle
0 Degrees
Manufacturer Grade
WSM10S
Primary Material Application ISO Code
M, S
Primary Material Application
Nickel, Stainless Steel, Titanium
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code FM5, Inscribed Circle 3/8 in, TiAlN+Al2O3+Al, ANSI Code VNMG332-FM5 WSM10S, Clearance Angle 0 Degrees
