  11. Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

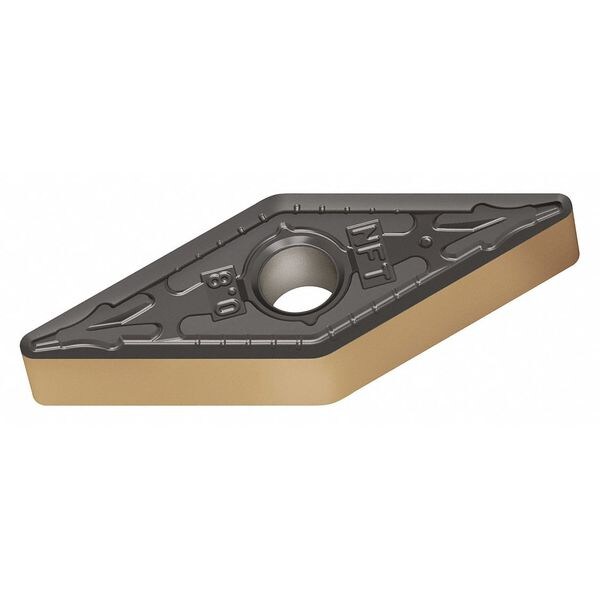

Walter Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide VNMG160408-NFT WSM20S - main

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

  • Mfr # VNMG160408-NFT WSM20S

  • Zoro # G4843540

product price: $30.79
/ea
Sold in multiples of 10 for $307.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG160408-NFT WSM20S
Zoro #
G4843540
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.031"
Mounting Hole Dia.
0.150"
Insert Thickness
0.1880"
Cutting Edge Length
16.00mm
Depth of Cut
0.30 to 2.00mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WSM20S
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
VNMG160408-NFT WSM20S
Cast Iron (K) Compatibility
No
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Relief Angle
0 Degrees
ANSI Number
VNMG332-NFT WSM20S
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
Yes
No. of Edges
4
Cutting Direction
Neutral
Mounting Style
Clamp
Steel (P) Compatibility
Yes
Coating
PVD
Primary Material Application ISO Code
M, S
Material - Machining
Carbide
ANSI Code
VNMG332-NFT WSM20S
Insert Holding Type
Straight Hole
Finish - Machining
TiAlN+Al2O3+Al
Shape
Rhombic
Manufacturer Grade
WSM20S
Chip-Breaker Code
NFT
Number of Cutting Edges
4
Primary Material Application
Nickel, Stainless Steel, Titanium
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Included Angle
35 Degrees
Cutting Application
Turning
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code NFT, Inscribed Circle 3/8 in, TiAlN+Al2O3+Al, ANSI Code VNMG332-NFT WSM20S, Clearance Angle 0 Degrees
