  11. Diamond Turning Insert, Diamond, 4, CNGN, 3, Ceramic

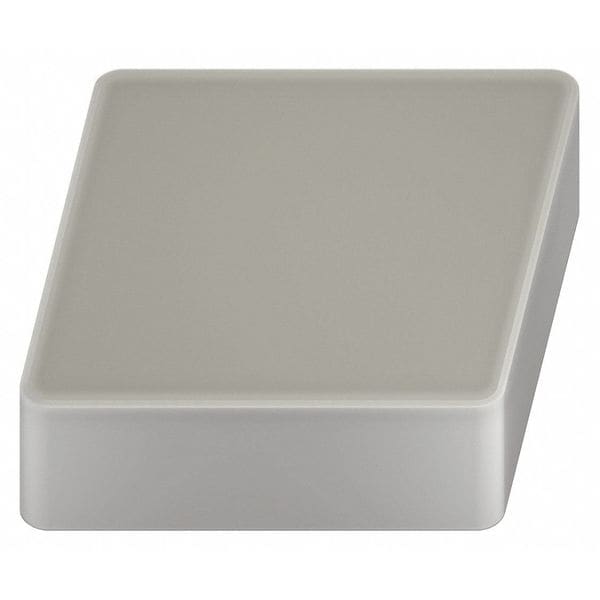

Walter Diamond Turning Insert, Diamond, 4, CNGN, 3, Ceramic CNGN120712T02020 WCK10 - main

Diamond Turning Insert, Diamond, 4, CNGN, 3, Ceramic

  • Mfr # CNGN120712T02020 WCK10

  • Zoro # G4764571

product price: $38.55
/ea
Sold in multiples of 10 for $385.50

Key Features

Insert Shape
Diamond
Insert Style
CNGN
Inscribed Circle
4
Insert Size
453
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNGN120712T02020 WCK10
Zoro #
G4764571
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
453
Corner Radius
3
Insert Thickness
0.3130"
Mounting Hole Dia.
0"
Nose Radius
0.047"
Cutting Edge Length
12.90mm
Thickness
5
Depth of Cut
0.10 to 6.00mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGN
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WCK10
Insert Material
Ceramic
Insert Application
Roughing
Rake
Negative
ISO Number
CNGN120712T02020 WCK10
Workpiece Compatibility
Cast Iron (K)
Hardened (H) Compatibility
No
Steel (P) Compatibility
No
ANSI Number
CNGN453T02020 WCK10
Coating
Uncoated
Relief Angle
0 Degrees
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
Yes
No. of Edges
2
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Mounting Style
Clamp
Cutting Direction
Neutral
Super Alloy (S) Compatibility
No
Cutting Edge
Chamfered
Chip-Breaker Code
T02020
Material - Machining
Ceramic
Manufacturer Grade
WCK10
Primary Material Application
Cast Iron
Primary Material Application ISO Code
K
ANSI Code
CNGN453T02020 WCK10
Cutting Application
Turning
Number of Cutting Edges
2
Insert Holding Type
No Screw Hole
Clearance Angle
0 Degrees
Chamfer Angle
20 Degrees
Shape
Rhombic
Material Grade - Machining
Silicon Nitride Si3N4
Measurement System
Fractional Inch
Included Angle
80 Degrees
Material
Ceramic

Description

Diamond Turning Insert, Chip-Breaker Code T02020, Inscribed Circle 1/2 in, ANSI Code CNGN453T02020 WCK10, Chamfer Angle 20 Degrees , Clearance Angle 0 Degrees
