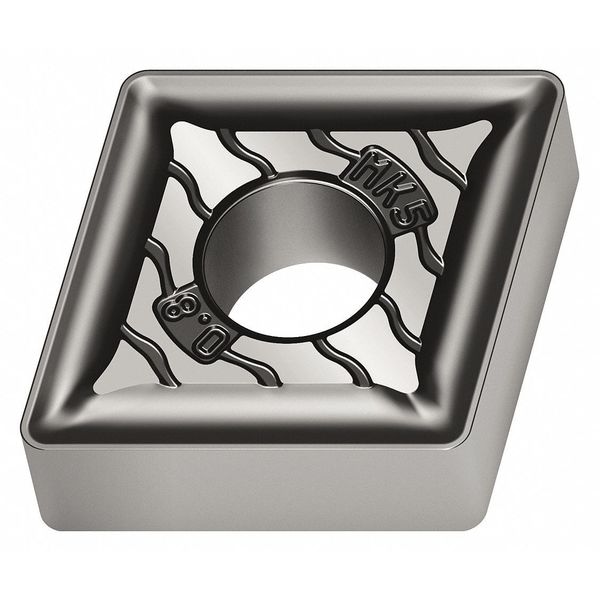

Walter Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide CNMG120408-MK5 WKP30S - main

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

  • Mfr # CNMG120408-MK5 WKP30S

  • Zoro # G4807183

product price: $15.35
/ea
Sold in multiples of 10 for $153.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG120408-MK5 WKP30S
Zoro #
G4807183
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.031"
Mounting Hole Dia.
0.203"
Insert Thickness
0.1880"
Depth of Cut
0.80 to 5.00mm
Cutting Edge Length
12.90mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WKP30S
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG120408-MK5 WKP30S
ANSI Number
CNMG432-MK5 WKP30S
Relief Angle
0 Degrees
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Coating
CVD
Cast Iron (K) Compatibility
Yes
Mounting Style
Clamp
No. of Edges
4
Primary Material Application
Cast Iron, Steel
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Cutting Application
Turning
Finish - Machining
TiCN+Al2O3+TiCN
Manufacturer Grade
WKP30S
Material - Machining
Carbide
ANSI Code
CNMG432-MK5 WKP30S
Shape
Rhombic
Chip-Breaker Code
MK5
Primary Material Application ISO Code
K, P
Number of Cutting Edges
4
Included Angle
80 Degrees
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code MK5, Inscribed Circle 1/2 in, TiCN+Al2O3+TiCN, ANSI Code CNMG432-MK5 WKP30S, Clearance Angle 0 Degrees
