  11. Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

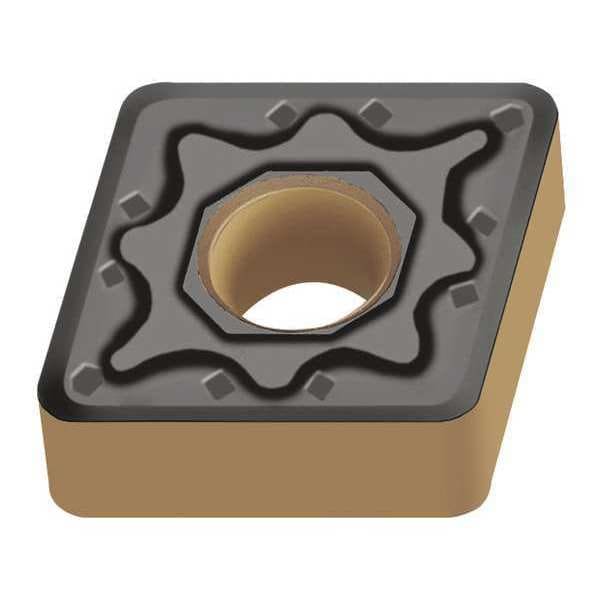

Walter Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide CNMG120408-NM4 WAM20 - main

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

  • Mfr # CNMG120408-NM4 WAM20

  • Zoro # G7919007

product price: $18.19
/ea
Sold in multiples of 10 for $181.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG120408-NM4 WAM20
Zoro #
G7919007
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.1880"
Nose Radius
0.0310"
Thickness
3
Cutting Edge Length
12.90mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WAM20
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG120408-NM4 WAM20
No. of Edges
2
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
No
Mounting Style
Clamp
Stainless (M) Compatibility
Yes
Relief Angle
0 Degrees
For Use With
Toolholders, Boring Bars
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Hardened (H)
Super Alloy (S) Compatibility
Yes
Coating
PVD
ANSI Number
CNMG433
Clearance Angle
0 Degrees
Primary Material Application
Stainless Steel
Chip-Breaker Code
NM4
ANSI Code
CNMG432-NM4 WAM20
Material - Machining
Carbide
Primary Material Application ISO Code
M
Included Angle
80 Degrees
Insert Holding Type
Straight Hole
Finish - Machining
TiCN+Al2O3+HfN
Number of Cutting Edges
2
Cutting Application
Turning
Manufacturer Grade
WAM20
Measurement System
Fractional Inch
Shape
Rhombic
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code NM4, Inscribed Circle 1/2 in, TiCN+Al2O3+HfN, ANSI Code CNMG432-NM4 WAM20, Clearance Angle 0 Degrees
