  11. Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

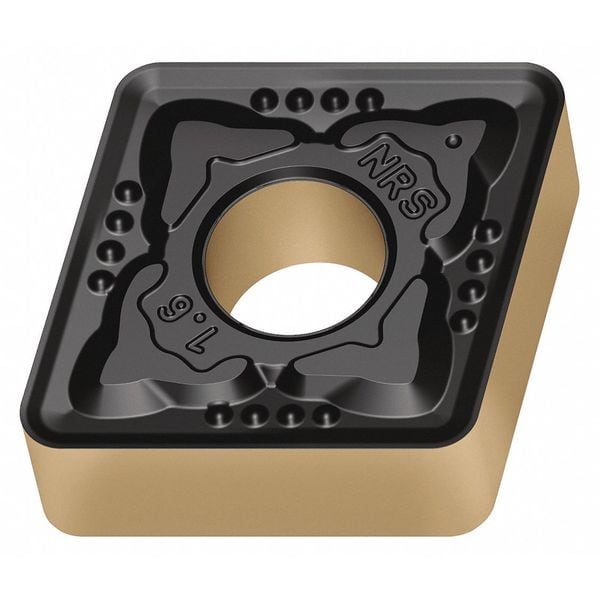

Walter Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG120412-NRS WSM30S - main

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

  • Mfr # CNMG120412-NRS WSM30S

  • Zoro # G4771982

product price: $16.39
/ea
Sold in multiples of 10 for $163.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG120412-NRS WSM30S
Zoro #
G4771982
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.1880"
Nose Radius
0.047"
Depth of Cut
1.20 to 4.00mm
Thickness
3
Cutting Edge Length
12.90mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WSM30S
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMG120412-NRS WSM30S
ANSI Number
CNMG433-NRS WSM30S
Relief Angle
0 Degrees
Coating
PVD
No. of Edges
4
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Mounting Style
Clamp
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Cast Iron (K) Compatibility
No
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
Yes
Included Angle
80 Degrees
Chip-Breaker Code
NRS
Shape
Rhombic
Manufacturer Grade
WSM30S
ANSI Code
CNMG433-NRS WSM30S
Primary Material Application
Nickel, Stainless Steel, Titanium
Material - Machining
Carbide
Primary Material Application ISO Code
M, S
Clearance Angle
0 Degrees
Finish - Machining
TiAlN+Al2O3+Al
Cutting Application
Turning
Insert Holding Type
Straight Hole
Number of Cutting Edges
4
Measurement System
Fractional Inch
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code NRS, Inscribed Circle 1/2 in, TiAlN+Al2O3+Al, ANSI Code CNMG433-NRS WSM30S, Clearance Angle 0 Degrees
