  11. Diamond Turning Insert, Diamond, 4, CNMM, 3, Carbide

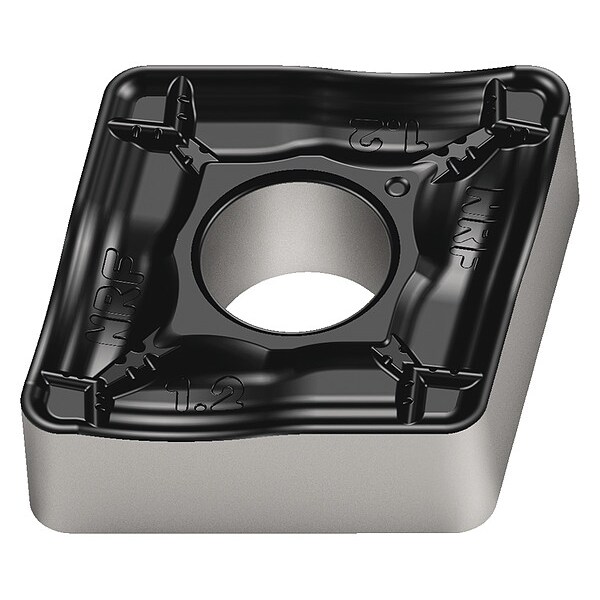

Walter Diamond Turning Insert, Diamond, 4, CNMM, 3, Carbide CNMM120412-NRF WPP10S - main

Diamond Turning Insert, Diamond, 4, CNMM, 3, Carbide

  • Mfr # CNMM120412-NRF WPP10S

  • Zoro # G8169567

product price: $17.39
/ea
Sold in multiples of 10 for $173.90

Key Features

Insert Shape
Diamond
Insert Style
CNMM
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMM120412-NRF WPP10S
Zoro #
G8169567
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.047"
Insert Thickness
0.1875"
Thickness
3
Cutting Edge Length
12.90mm
Depth of Cut
1.20 to 7.00mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMM
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WPP10S
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMM120412-NRF WPP10S
Stainless (M) Compatibility
No
Steel (P) Compatibility
Yes
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
For Use With
Toolholders and Boring Bars
Super Alloy (S) Compatibility
No
Mounting Style
Screw Held
Cast Iron (K) Compatibility
No
ANSI Number
CNMM433-NRF
Workpiece Compatibility
Steel (P)
Coating
CVD
Cutting Direction
Neutral
No. of Edges
4
Non Ferrous (N) Compatibility
No
Manufacturer Grade
WPP10S
Finish - Machining
TiCN+Al2O3+TiCN
ANSI Code
CNMM433-NRF WPP10S
Primary Material Application ISO Code
P
Cutting Application
Turning
Measurement System
Fractional Inch
Primary Material Application
Steel
Shape
Rhombic
Insert Holding Type
Straight Hole
Included Angle
80 Degrees
Number of Cutting Edges
4
Clearance Angle
0 Degrees
Material - Machining
Carbide
Chip-Breaker Code
NRF
Material
Carbide
Application
Roughing
Style
CNMM

Description

Diamond Turning Insert, Chip-Breaker Code NRF, Inscribed Circle 1/2 in, TiCN+Al2O3+TiCN, ANSI Code CNMM433-NRF WPP10S, Clearance Angle 0 Degrees
