  11. Diamond Turning Insert, Diamond, 4, DNGG, 2, Carbide

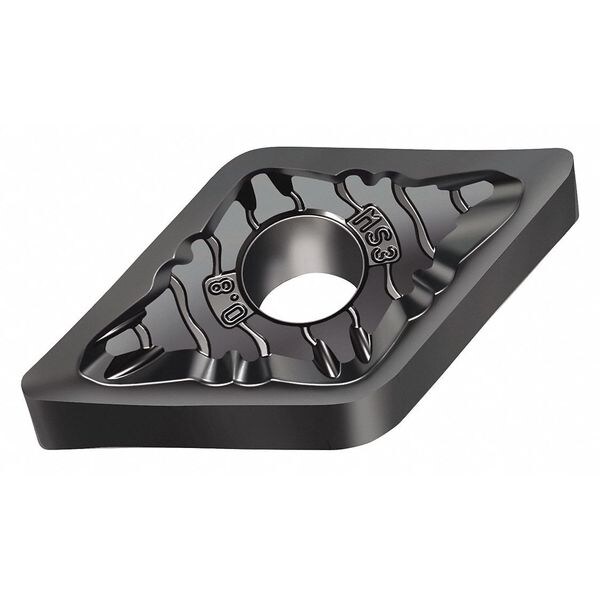

Walter Diamond Turning Insert, Diamond, 4, DNGG, 2, Carbide DNGG150408-MS3 WSM01 - main

Diamond Turning Insert, Diamond, 4, DNGG, 2, Carbide

  • Mfr # DNGG150408-MS3 WSM01

  • Zoro # G4809408

product price: $36.59
/ea
Sold in multiples of 10 for $365.90

Key Features

Insert Shape
Diamond
Insert Style
DNGG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNGG150408-MS3 WSM01
Zoro #
G4809408
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1880"
Nose Radius
0.031"
Mounting Hole Dia.
0.203"
Thickness
3
Depth of Cut
0.80 to 2.50mm
Cutting Edge Length
15.50mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNGG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WSM01
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
DNGG150408-MS3 WSM01
Mounting Style
Clamp
Hardened (H) Compatibility
Yes
Workpiece Compatibility
Hardened (H), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Relief Angle
0 Degrees
Super Alloy (S) Compatibility
Yes
Coating
Uncoated
Cast Iron (K) Compatibility
No
ANSI Number
DNGG432-MS3 WSM01
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
No. of Edges
4
Primary Material Application
Nickel, Stainless Steel, Titanium
Clearance Angle
0 Degrees
Manufacturer Grade
WSM01
Included Angle
55 Degrees
Cutting Application
Turning
Material - Machining
Carbide
Chip-Breaker Code
MS3
Primary Material Application ISO Code
M, S
Insert Holding Type
Straight Hole
ANSI Code
DNGG432-MS3 WSM01
Shape
Rhombic
Number of Cutting Edges
4
Measurement System
Fractional Inch
Finish - Machining
TiAlN
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code MS3, Inscribed Circle 1/2 in, TiAlN, ANSI Code DNGG432-MS3 WSM01, Clearance Angle 0 Degrees
