  11. Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

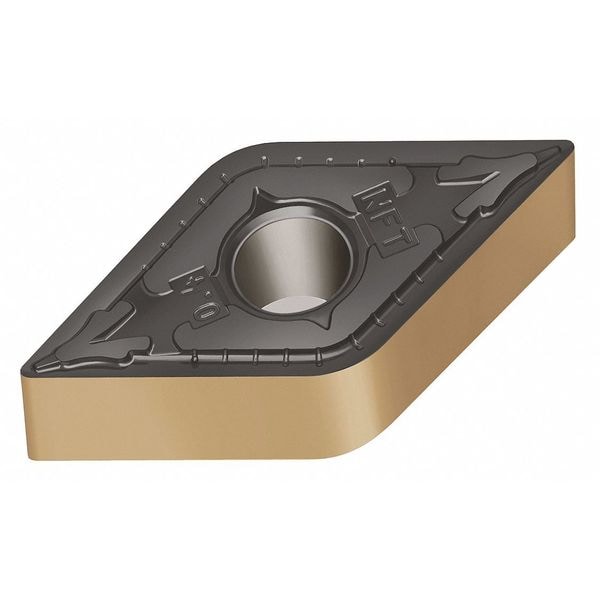

Walter Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide DNMG150604-NFT WSM20S - main

Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

  • Mfr # DNMG150604-NFT WSM20S

  • Zoro # G4794023

product price: $24.15
/ea
Sold in multiples of 10 for $241.50

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
441
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG150604-NFT WSM20S
Zoro #
G4794023
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
441
Corner Radius
1
Insert Thickness
0.2500"
Mounting Hole Dia.
0.203"
Nose Radius
0.016"
Depth of Cut
0.40 to 1.50mm
Thickness
4
Cutting Edge Length
15.50mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WSM20S
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
DNMG150604-NFT WSM20S
No. of Edges
4
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
Yes
ANSI Number
DNMG441-NFT WSM20S
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Stainless (M) Compatibility
Yes
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Mounting Style
Clamp
Cutting Direction
Neutral
Coating
PVD
Manufacturer Grade
WSM20S
Measurement System
Fractional Inch
Chip-Breaker Code
NFT
Shape
Rhombic
Finish - Machining
TiAlN+Al2O3+Al
Included Angle
55 Degrees
Primary Material Application ISO Code
M, S
Clearance Angle
0 Degrees
Material - Machining
Carbide
ANSI Code
DNMG441-NFT WSM20S
Cutting Application
Turning
Number of Cutting Edges
4
Primary Material Application
Nickel, Stainless Steel, Titanium
Insert Holding Type
Straight Hole
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code NFT, Inscribed Circle 1/2 in, TiAlN+Al2O3+Al, ANSI Code DNMG441-NFT WSM20S, Clearance Angle 0 Degrees
