  11. Indexable Boring Bar, 250.00mm L, High Speed Steel, 55 Degrees Diamond Insert Shape

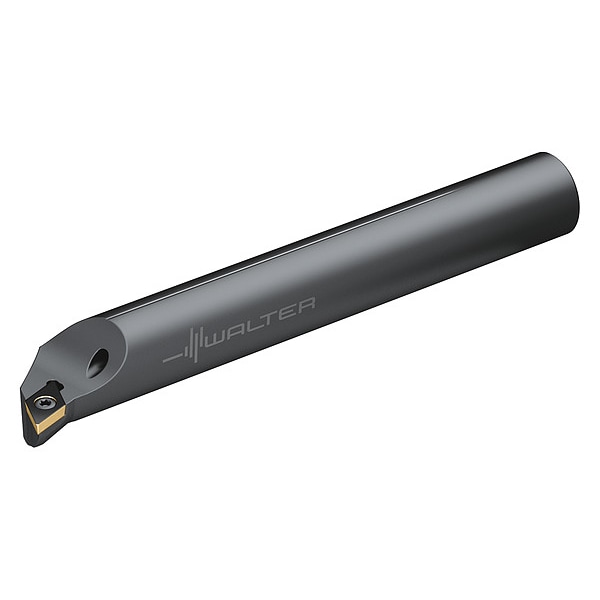

Walter Indexable Boring Bar, 250.00mm L, High Speed Steel, 55 Degrees Diamond Insert Shape A20S-SDQCR11-R - main

Indexable Boring Bar, 250.00mm L, High Speed Steel, 55 Degrees Diamond Insert Shape

  • Mfr # A20S-SDQCR11-R

  • Zoro # G8096067

product price: $228.99
/ea
Free Shipping & Returns

Key Features

Overall Length
250.00mm
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
Left/Right Hand
Right
Cutting Edge Type
0 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A20S-SDQCR11-R
Zoro #
G8096067
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
250.00mm
Bar Dia.
0.787"
Insert Size
11T3
Shank Dia.
20.00mm
Max. Bore Depth
80.00mm
Min. Bore Dia.
25.00mm

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
Left/Right Hand
Right
Cutting Edge Type
0 Degrees
Lead Angle
107 Degrees
Min. Bore
0.984"
Style
107 Degrees Boring and Facing
ANSI Number
A20S-SDQCR11-R
Rake
Positive
Type
Coolant Thru
Mounting Style
Screw Clamp
For Use With
DC11T3 Series
Cutting Direction
Right Hand
Includes
FS1465 Torx Key, FS2062 Clamping Screw
Coolant Fed
Coolant Through
Number of Inserts
1
Cutting Application
Facing, Interrupted Cuts, Profiling, Turning
ISO Number
A20S-SDQCR11-R
Compatible Hardware
FS1465 Torx key, FS2062 Clamping Screw
Center to Cutting Tip
13.00mm
Insert Holding Type
Screw On
Number of Coolant Holes
1
Primary Material Application ISO Code
K, M, N, P, S
Approach Angle
107.5 Degrees
Head Material
Steel
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Secondary Material Application ISO Code
H
Insert Style
DC
Insert Clearance Angle
7 Degrees
Secondary Material Application
Hardened Steel

Description

Indexable Boring Bar, Insert Shape 55 Degrees Diamond, Overall Length 250.00mm, 107.5 Degrees , 13.00mm, FS1465 Torx key, FS2062 Clamping Screw, Coolant Through, Facing, Interrupted Cuts, Profiling, Turning, Right Hand
