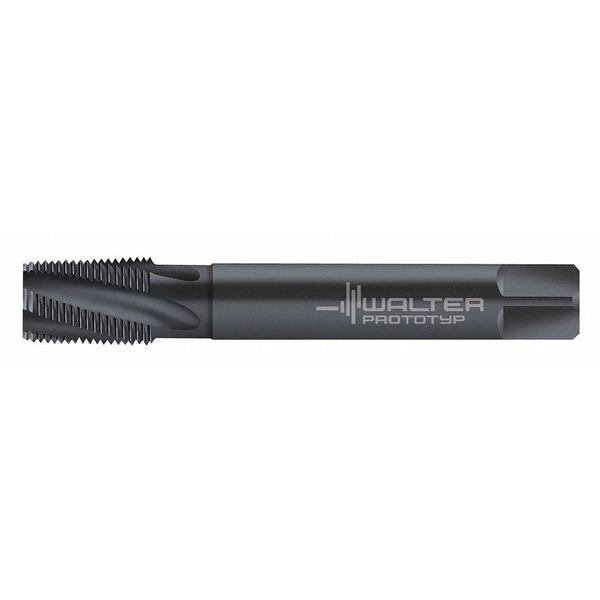

Pipe Tap, 3/8"-18, Plug, 5 Flutes, NPTF
- Mfr # A264602-NPTF3/8
- Zoro # G2566203
product price:Â
$
206.99
/ea
Free Shipping & Returns
Key Features
Tap Thread Size
3/8"-18
Tap Chamfer
Plug
Number of Flutes
5
Tap Thread Type
NPTF
Tap Style
Pipe
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- A264602-NPTF3/8
- Zoro #
- G2566203
- UPC #
- -
- Country of Origin
- Germany
- Item
- Pipe Tap
- Tap Chamfer
- Plug
- Number of Flutes
- 5
- Tap Thread Type
- NPTF
- Tap Style
- Pipe
- List Number
- A264602
- Number of Pieces
- 1
- Standards
- ANSI, DIN
- Tap Material
- High Speed Steel
- Thread Direction
- Right Hand
- Tap Finish
- Steam Oxide
- Cutting Direction - Machining
- Right Hand
- Series
- Paradur Ni
- Primary Material Application
- Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
- Measurement System
- Fractional Inch
- Coolant Fed
- Non-Coolant Through
- Extended Neck
- Yes
- Thread Standard
- NPTF
- Helix Angle
- 15 Degrees
- Primary Material Application ISO Code
- K, N, P
- Tap Shank Standard
- ANSI
- Material Grade - Machining
- VAP
- Threads per Inch
- 18
Dimensions
- Tap Thread Size
- 3/8"-18
- Thread Length
- 13/16"
- Shank Dia.
- 11/16"
- Overall Length
- 4-5/16"
- Tap Dimension Type
- Inch
- Pitch Diameter Limit
- Not Rated
- Tap Size
- 3/8"
- Thread Size
- 3/8"-18
- Drill Bit Size
- 0.6020 in
- Shank Length
- 42.70 mm
- 75% Thread Drill Size
- 9/16 in
- Square Size
- 13.49mm
- Tap Length Standard
- DIN
- Shank Diameter
- 17.78 mm
- Square Width
- 13.49 mm
- Square Length
- 13.49 mm
- Wire Rope Length
- 110 mm
- Length
- 110 mm
Description
Pipe and Conduit Thread Tap, Thread Size 3/8 In.-18, NPTF, Overall Length 110 mm, High Speed Steel, Black Oxide, Right Hand, Thread Length 20 mm, 75 Percent Thread Drill Size 9/16 in, Number of Flutes 5
