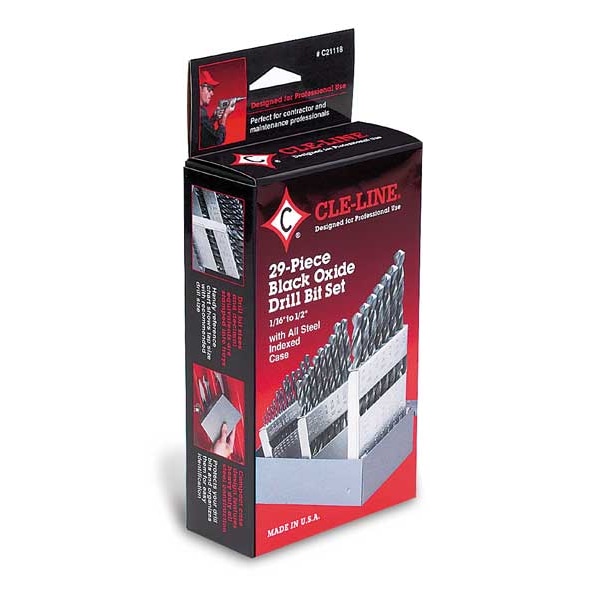

29PC 118 Degree General Purpose Jobber Lngth Drill Set Cle-Line 1899 Steam Oxide HSS RHS/RHC 1/16-1/2x1/64

  • Mfr # C21118

  • Zoro # G2170822

product price:  $95.59
/ea

Key Features

Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C21118
Zoro #
G2170822
UPC #
697334211181
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 1/2 in by 64ths
Shank Dia.
1/6 in
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
Depth:Dia. Ratio
4xD
Drill Bit Dimension Type
Fractional Inch
Depth x Dia. Ratio
4xD
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Largest Drill Bit Size
1/2 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Jobber-Length
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
List Number
1899
Point Type
Conventional Point
Standards
ASME B94.11M-1993, DIN 338
Material Grade - Machining
General Purpose
Material - Machining
High Speed Steel
Aircraft Drill
No
Finish - Machining
Black Oxide
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Conventional Point
Primary Material Application
Cast Iron, Steel
Number of Drill Bits
29
Shank Type - Machining
Straight
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Primary Material Application ISO Code
K, P
Spiral Direction
Right Hand
Number of Flutes
2
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

The CLE-LINE C21118 is a jobber length drill bit set comprising 29 pieces with fractional inch sizes ranging from 1/16" to 1/2" by 64ths. Made from high speed steel with a general purpose grade, these drill bits feature a conventional 118-degree point type and are intended for drilling cast iron and steel applications. The set includes a metal index case for storage and organization, accommodating drill bits with lengths spanning from 1 7/8" to 6". Each drill bit has a straight shank with a diameter of 1/6" and two spiral flutes with right-hand cutting direction.

Key Features:

  • Contains 29 drill bits sized from 1/16" to 1/2" in fractional inches.
  • Jobber length classification with overall lengths between 1 7/8" and 6".
  • High speed steel construction for general purpose machining.
  • Conventional 118° point angle for ISO material groups K and P.
  • Two-flute spiral design with helix angles ranging from 21° to 34° and right-hand cutting direction.
  • Straight shank type with 1/6" diameter.
  • Includes a metal drill index case for organization and storage.
  • Manufacturing meets ASME B94.11M-1993 and DIN 338 standards.
  • Not rated for aircraft drill applications.
