  11. Spiral Flute Tap, Modified Bottoming 3 Flutes

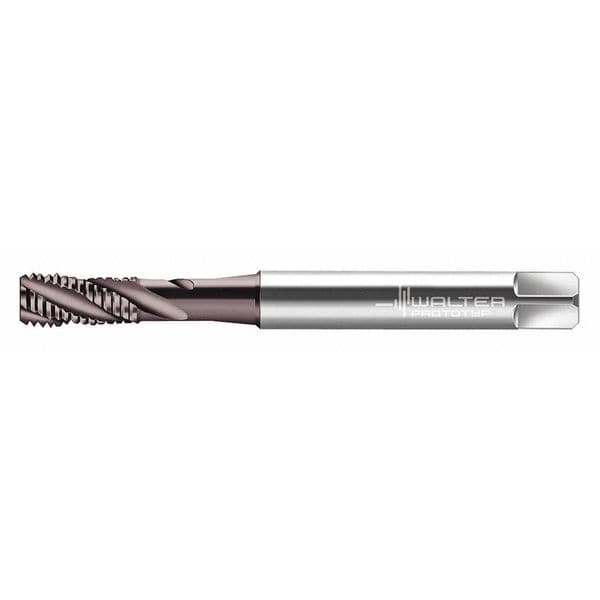

Walter Spiral Flute Tap, Modified Bottoming 3 Flutes 2051062-M3 - main

Spiral Flute Tap, Modified Bottoming 3 Flutes

  • Mfr # 2051062-M3

  • Zoro # G2893797

product price: $64.59
/ea

Key Features

Overall Length
57.25mm
Tap Style
Spiral Flute
Shank Dia.
3.50mm
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2051062-M3
Zoro #
G2893797
UPC #
-
Country of Origin
India

Dimensions

Overall Length
57.25mm
Shank Dia.
3.50mm
Tap Dimension Type
Metric
Tap Size
M3
Thread Length
6.00mm
Tap Thread Size
M3-0.50
65% Thread Drill Size
#38
Shank Length
38.00 mm
75% Thread Drill Size
2.50mm
Drill Bit Size
2.50mm
Thread Size
M3x0.5
55% Thread Drill Size
#37
Square Size
2.70mm
Pitch Diameter Limit
6HX

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Standards
DIN 371
Tap Finish
Hard Lube
Cutting Direction - Machining
Right Hand
Series
Paradur STE
Thread Standard
Metric Coarse
Secondary Material Application ISO Code
K, M, N, P
Spiral Direction
Right Hand
Extended Neck
Yes
Shank Type - Machining
Straight
Thread Limit
6HX
Tap Shank Standard
DIN 371
Helix Angle
40 Degrees
Measurement System
Metric
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Coolant Fed
Non-Coolant Through
Thread Pitch
0.50mm
Number of Pieces
1
List Number
2051062

Description

Spiral Flute Tap, Thread Size M3x0.5, Metric, Overall Length 56 mm, High Speed Steel, THL, Thread Length 6 mm, 75 Percent Thread Drill Size 2.50mm, Thread Limit 6HX, Class of Fit 6HX, Thread Direction Right Hand, Number of Flutes 3
