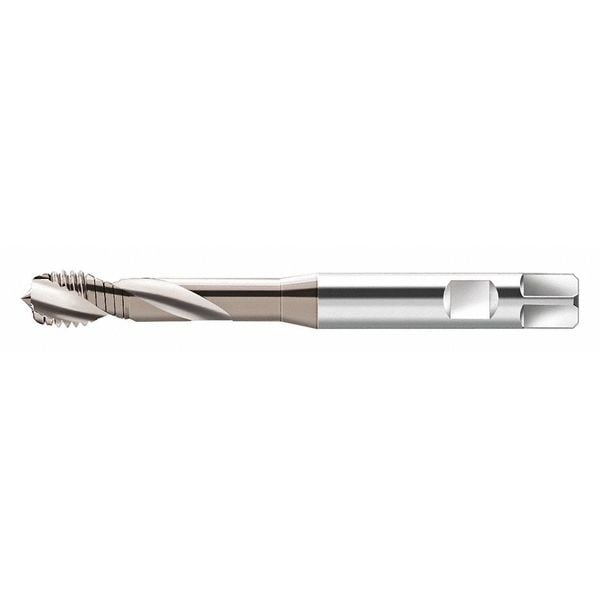

Walter Spiral Flute Tap Plug, 2 Flutes S2051604-M5 - main

Spiral Flute Tap Plug, 2 Flutes

  • Mfr # S2051604-M5

  • Zoro # G2904489

product price: $54.59
/ea

Key Features

Overall Length
72.00mm
Tap Style
Spiral Flute
Tap Size
M5
Shank Dia.
6.00mm
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
S2051604-M5
Zoro #
G2904489
UPC #
-
Country of Origin
India

Dimensions

Overall Length
72.00mm
Tap Size
M5
Shank Dia.
6.00mm
Tap Dimension Type
Metric
Thread Length
8.00mm
Tap Thread Size
M5-0.80
Shank Length
45.00 mm
Thread Size
M5x0.8
Drill Bit Size
4.20mm
65% Thread Drill Size
4.30 mm
Square Size
4.90mm
55% Thread Drill Size
4.40 mm
75% Thread Drill Size
4.20mm
Pitch Diameter Limit
6H

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
2
Measurement System
Metric
Tap Thread Type
Metric Coarse
Standards
DIN 371
Thread Direction
Right Hand
Tap Finish
CrN
Cutting Direction - Machining
Right Hand
Series
Paradur WLM Synchrospeed
Secondary Material Application ISO Code
P
Spiral Direction
Right Hand
Tap Shank Standard
DIN 371
Extended Neck
Yes
Material Grade - Machining
CRN
Helix Angle
45 Degrees
Thread Pitch
0.80mm
Thread Standard
Metric Coarse
Features
For long-chipping materials, Rigid Tapping
Thread Limit
D3, D4
Secondary Material Application
Steel
Primary Material Application ISO Code
N, O, S
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Weldon Flat
Primary Material Application
Aluminum, Brass, Bronze, Composite, Copper, Nickel, Titanium
Number of Pieces
1
List Number
S2051604

Description

Spiral Flute Tap, Thread Size M5x0.8, Metric, Overall Length 70 mm, High Speed Steel, CrN, Thread Length 8 mm, 75 Percent Thread Drill Size 4.20mm, Thread Limit D3/D4, Thread Direction Right Hand, Number of Flutes 2
