Shop WALTER

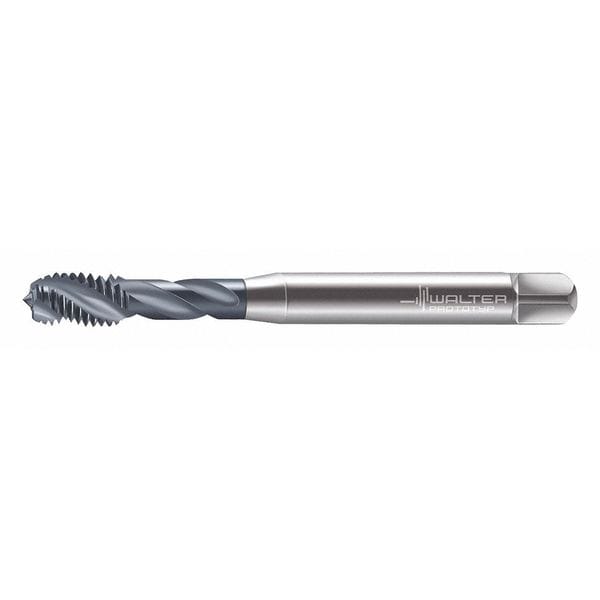

Spiral Flute Tap, Plug, 3

  • Mfr # 7051776-M3

  • Zoro # G2556187

product price:
$
48.35
/ea

Key Features

Overall Length
59.00mm
Tap Style
Spiral Flute
Shank Dia.
3.50mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7051776-M3
Zoro #
G2556187
UPC #
-
Country of Origin
India

Dimensions

Overall Length
59.00mm
Shank Dia.
3.50mm
Tap Dimension Type
Metric
Tap Size
M3
Thread Length
6.00mm
Tap Thread Size
M3-0.50
Pitch Diameter Limit
6H
Drill Bit Size
2.50mm
65% Thread Drill Size
#38
Thread Size
M3x0.5
75% Thread Drill Size
2.50mm
Square Size
2.70mm
Shank Length
43.00 mm
55% Thread Drill Size
#37
Square Width
2.7 mm
Shank Diameter
3.5 mm
Square Length
2.7 mm
Wire Rope Length
56 mm
Length
56 mm

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Finish
TiCN
Thread Direction
Right Hand
List Number
7051776
Standards
DIN 371
Tap Thread Type
Metric Coarse
Number of Pieces
1
Cutting Direction - Machining
Right Hand
Features
For Long Chipping Materials
Series
Paradur Uni
Primary Material Application ISO Code
P
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper
Spiral Direction
Right Hand
Measurement System
Metric
Tap Shank Standard
DIN 371
Extended Neck
Yes
Thread Pitch
0.50mm
Shank Type - Machining
Straight
Secondary Material Application ISO Code
K, N
Primary Material Application
Steel
Coolant Fed
Non-Coolant Through
Thread Standard
Metric
Helix Angle
40 Degrees
Thread Limit
D3
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size M3x0.5, Metric, Overall Length 56 mm, High Speed Steel, TiCN, Thread Length 6 mm, 75 Percent Thread Drill Size 2.50mm, Thread Limit D3, Thread Direction Right Hand, Number of Flutes 3
