Shop WALTER

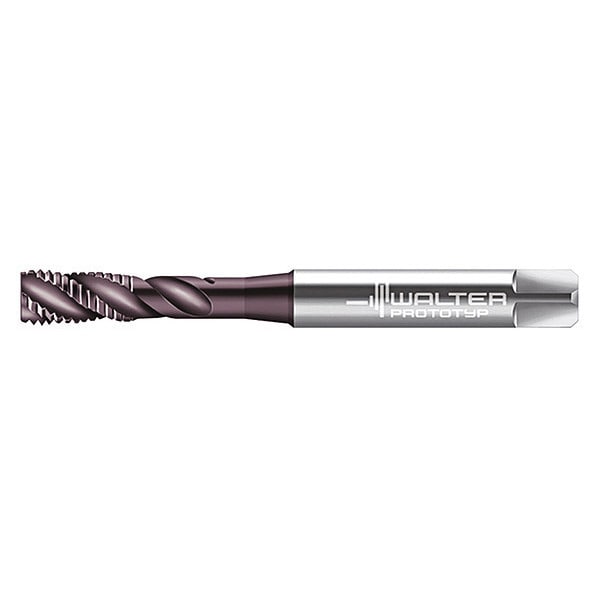

Spiral Flute Tap, Plug, 3

  • Mfr # AEP2251312-UNC3/8
  • Zoro # G2567411
product price:
$
150.99
/ea
Free Shipping & Returns

Key Features

Overall Length
3-15/16"
Tap Style
Spiral Flute
Shank Dia.
3/8"
Tap Chamfer
Plug
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AEP2251312-UNC3/8
Zoro #
G2567411
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
3-15/16"
Shank Dia.
3/8"
Tap Dimension Type
Inch
Tap Size
3/8"
Thread Length
9/16"
Pitch Diameter Limit
2B
Tap Thread Size
3/8"-16
Drill Bit Size
0.3150 in
65% Thread Drill Size
P
Tap Length Standard
DIN
Thread Size
3/8"-16
Square Size
0.2860 in
75% Thread Drill Size
5/16 in
Shank Length
2 3/8 in
55% Thread Drill Size
8.40 mm
Shank Diameter
3/8 in
Square Width
0.286 in
Square Length
0.286 in
Wire Rope Length
3 15/16 in
Length
3 15/16 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
UNC
Tap Finish
THL
List Number
AEP2251312
Number of Pieces
1
Thread Direction
Right Hand
Standards
DIN/ANSI
Cutting Direction - Machining
Right Hand
Features
Universal High-Performance Cut Tap, THL: Good Chip Control, Good Wear Resistance
Series
Paradur Eco Plus
Class of Fit
2B
Primary Material Application ISO Code
K, M, N, P
Tap Shank Standard
DIN/ANSI
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Coolant Fed
Coolant Through
Extended Neck
Yes
Spiral Direction
Right Hand
Shank Type - Machining
Straight
Threads per Inch
16
Measurement System
Fractional Inch
Thread Limit
H4/H5
Helix Angle
45 Degrees
Thread Standard
UNC
Shank Type
Straight

Description

Spiral Flute Tap, Thread Size 3/8 In.-16, UNC, Overall Length 3 15/16 in, High Speed Steel, THL, Thread Length 19/32 in, 75 Percent Thread Drill Size 5/16 in, Thread Limit H4/H5, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 3
