29PC NAS907 Type C Heavy-Duty Screw Machine Dril Set Cleveland 2330 Bright HSS RHS/RHC 1/16-1/2x1/64
Mfr # C70368
Zoro # G3006180
Key Features
Specifications
Product Information
- MFR #
- C70368
- Zoro #
- G3006180
- UPC #
- 697334703686
- Country of Origin
- United States
Dimensions
- Shank Size
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Shank Dia.
- 1/16 in -1/2 in
- Drilling Length
- 0.625", 0.688", 0.750", 0.813", 0.875", 0.938", 1.000", 1.063", 1.125", 1.188", 1.250", 1.313", 1.375", 1.438", 1.500", 1.563", 1.625", 1.688", 1.688", 1.750", 1.813", 1.875", 1.938", 2.000", 2.063", 2.125", 2.125", 2.188", 2.250"
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Drill Bit Dimension Type
- Fractional Inch
- Overall Length
- 1.625", 1.688", 1.750", 1.813", 1.875", 1.938", 2.063", 2.125", 2.188", 2.250", 2.375", 2.438", 2.500", 2.625", 2.688", 2.750", 2.813", 2.938", 3.000", 3.063", 3.125", 3.250", 3.313", 3.375", 3.438", 3.563", 3.625", 3.688", 3.750"
- Depth x Dia. Ratio
- 4xD
- Depth:Dia. Ratio
- 4xD
- Drill Length Class
- Screw-Machine Length
- Smallest Drill Bit Size
- 1/16 in
- Largest Drill Bit Size
- 1/2 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
- Diameter
- 1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in, 11/64 in, 3/16 in, 13/64 in, 7/32 in, 15/64 in, 1/4 in, 17/64 in, 9/32 in, 19/64 in, 5/16 in, 21/64 in, 11/32 in, 23/64 in, 3/8 in, 25/64 in, 13/32 in, 27/64 in, 7/16 in, 29/64 in, 15/32 in, 31/64 in, 1/2 in
Description

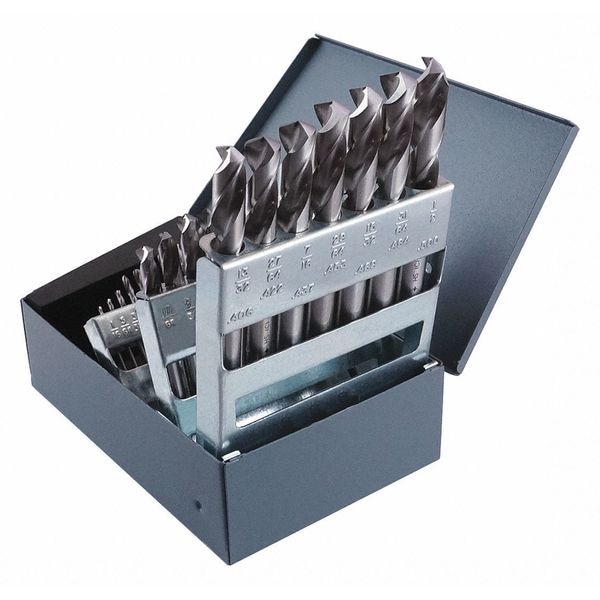

The CLEVELAND - C70368 is a screw machine drill bit set intended for drilling applications; features include a split-point tip (135°) and two-flute spiral geometry for positioning. Intended for use on the following materials: austenitic stainless steel, aluminum, carbon steel, die steel, iron-based alloys, and tool steel. The set includes 29 drill bits sized from 1/16 inch up to 1/2 inch in fractional increments with screw-machine length for controlled drilling depth. These drill bits have a split-point tip with a 135-degree point angle for drill tip positioning and include a split-point tip (135° point angle) intended to help reduce drill walking during drilling.
Key Features:
- Drill bits are constructed from high-speed steel (HSS).
- Spiral flute design with two flutes and helix angles ranging between 21 and 34 degrees.
- Straight shank design with diameters matching drill bit sizes from 1/16 inch to 1/2 inch.
- Drill lengths vary approximately from 0.625 inches up to 3.75 inches depending on bit size.
- The set is marked as NAS 907 Type C (per manufacturer specification).
- Includes a metal drill index case for organized storage and selection.
- Has right-hand cutting direction (per geometry/manufacturer specification) and is intended for dry/non-coolant-fed operation (per manufacturer specification).
