  11. Spiral Flute Tap Plug, 3 Flutes

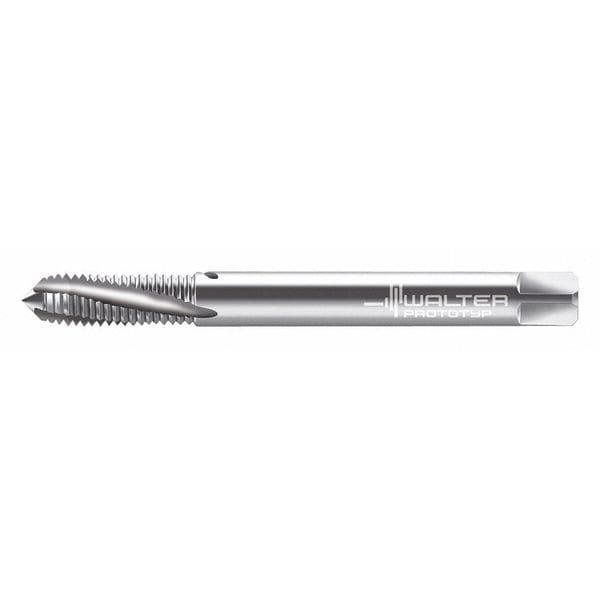

Walter Spiral Flute Tap Plug, 3 Flutes 20410-M4 - main

Spiral Flute Tap Plug, 3 Flutes

  • Mfr # 20410-M4

  • Zoro # G2892342

product price: $36.65
/ea

Key Features

Overall Length
65.00mm
Tap Style
Spiral Flute
Shank Dia.
4.50mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
20410-M4
Zoro #
G2892342
UPC #
-
Country of Origin
India

Dimensions

Overall Length
65.00mm
Shank Dia.
4.50mm
Tap Dimension Type
Metric
Tap Size
M4
Thread Length
7.00mm
Tap Thread Size
M4-0.70
Drill Bit Size
3.30mm
Shank Length
42.00 mm
Square Size
3.40mm
Thread Size
M4x0.7
75% Thread Drill Size
3.30mm
55% Thread Drill Size
3.50 mm
65% Thread Drill Size
3.40 mm
Pitch Diameter Limit
6H

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Thread Type
Metric Coarse
Standards
DIN 371
Thread Direction
Right Hand
Tap Finish
Uncoated
Cutting Direction - Machining
Right Hand
Series
Paradur N
Primary Material Application ISO Code
K, N, P
Thread Limit
D3, D4
Spiral Direction
Right Hand
Thread Standard
Metric Coarse
Measurement System
Metric
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Coolant Fed
Non-Coolant Through
Extended Neck
Yes
Thread Pitch
0.70mm
Shank Type - Machining
Straight
Helix Angle
15 Degrees
Features
For Long Chipping Materials
Tap Shank Standard
DIN 371
List Number
20410
Number of Pieces
1

Description

Spiral Flute Tap, Thread Size M4x0.7, Metric, Overall Length 63 mm, High Speed Steel, Bright (Uncoated), Thread Length 7 mm, 75 Percent Thread Drill Size 3.30mm, Thread Limit D3/D4, Thread Direction Right Hand, Number of Flutes 3
