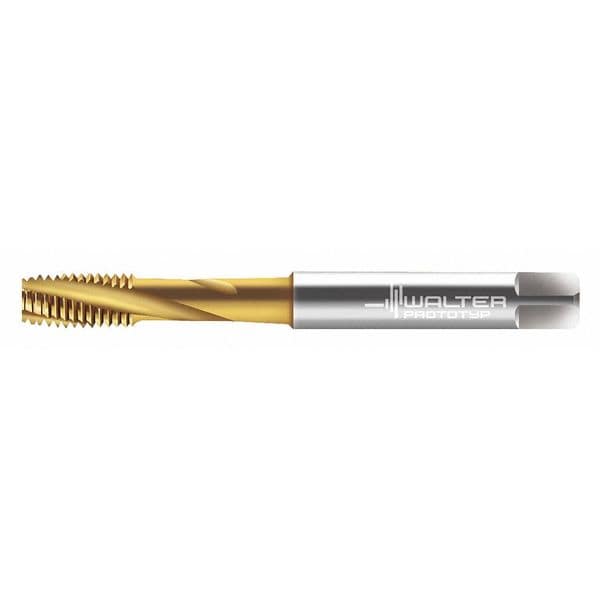

Walter Spiral Flute Tap, Plug 3 Flutes 2041215-M4 - main

Spiral Flute Tap, Plug 3 Flutes

  • Mfr # 2041215-M4

  • Zoro # G2892799

product price: $61.65
/ea

Key Features

Overall Length
65.00mm
Tap Style
Spiral Flute
Shank Dia.
4.50mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2041215-M4
Zoro #
G2892799
UPC #
-
Country of Origin
India

Dimensions

Overall Length
65.00mm
Shank Dia.
4.50mm
Tap Dimension Type
Metric
Tap Size
M4
Thread Length
12.00mm
Tap Thread Size
M4-0.70
Square Size
3.40mm
55% Thread Drill Size
3.50 mm
Drill Bit Size
3.30mm
Thread Size
M4x0.7
65% Thread Drill Size
3.40 mm
75% Thread Drill Size
3.30mm
Shank Length
42.00 mm
Pitch Diameter Limit
6H

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Tap Finish
TiN
Standards
DIN 371
Cutting Direction - Machining
Right Hand
Series
Paradur NH
Coolant Fed
Coolant Through
Measurement System
Metric
Thread Standard
Metric Coarse
Primary Material Application ISO Code
K, P
Secondary Material Application
Aluminum, Brass, Bronze, Composite, Copper
Extended Neck
Yes
Thread Limit
D3, D4
Thread Pitch
0.70mm
Primary Material Application
Cast Iron, Steel
Spiral Direction
Right Hand
Secondary Material Application ISO Code
N, O
Shank Type - Machining
Straight
Helix Angle
15 Degrees
Tap Shank Standard
DIN 371
Number of Pieces
1
List Number
2041215

Description

Spiral Flute Tap, Thread Size M4x0.7, Metric, Overall Length 63 mm, High Speed Steel, TiN, Thread Length 12 mm, 75 Percent Thread Drill Size 3.30mm, Thread Limit D3/D4, Thread Direction Right Hand, Number of Flutes 3
