  11. Spiral Flute Tap, Plug 3 Flutes

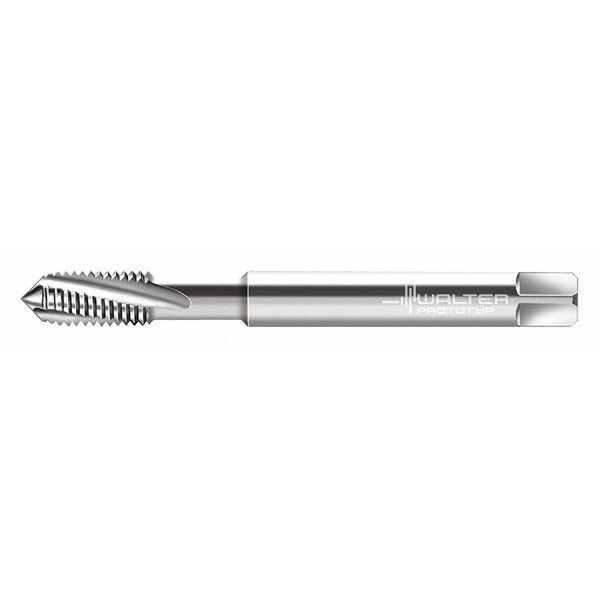

Walter Spiral Flute Tap, Plug 3 Flutes 204164-MJ8 - main

Spiral Flute Tap, Plug 3 Flutes

  • Mfr # 204164-MJ8

  • Zoro # G2892957

product price: $83.79
/ea
Free Shipping & Returns

Key Features

Overall Length
91.50mm
Tap Style
Spiral Flute
Shank Dia.
8.00mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
204164-MJ8
Zoro #
G2892957
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
91.50mm
Shank Dia.
8.00mm
Tap Dimension Type
Metric
Tap Size
M8
Thread Length
18.00mm
Tap Thread Size
M8-1.25
Square Size
6.20mm
Shank Length
60.00 mm
Drill Bit Size
6.90mm
Thread Size
M8x1.25
Pitch Diameter Limit
4H

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Tap Finish
Uncoated
Standards
DIN 371
Cutting Direction - Machining
Right Hand
Series
Paradur Ti
Measurement System
Metric
Coolant Fed
Non-Coolant Through
Secondary Material Application ISO Code
N
Primary Material Application
Nickel, Steel, Titanium
Spiral Direction
Right Hand
Primary Material Application ISO Code
P, S
Extended Neck
Yes
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Thread Standard
Metric Coarse
Helix Angle
15 Degrees
Thread Pitch
1.25mm
Tap Shank Standard
DIN 371
Shank Type - Machining
Straight
Thread Limit
4H
Number of Pieces
1
List Number
204164

Description

Spiral Flute Tap, Thread Size M8x1.25, Metric, Overall Length 90 mm, High Speed Steel, Bright (Uncoated), Thread Length 18 mm, Thread Limit 4H, Class of Fit 4H, Thread Direction Right Hand, Number of Flutes 3
