  11. Spiral Flute Tap, Plug, 3

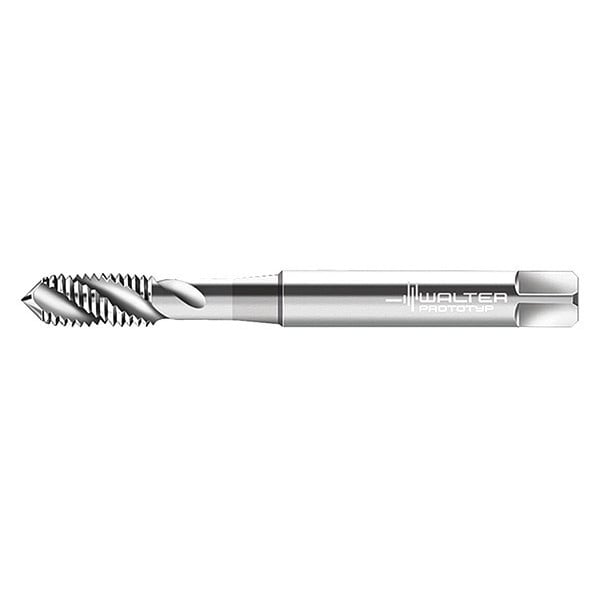

Walter Spiral Flute Tap, Plug, 3 P20549-M3 - main

Spiral Flute Tap, Plug, 3

  • Mfr # P20549-M3

  • Zoro # G2523479

product price: $42.15
/ea

Key Features

Overall Length
57.00mm
Tap Style
Spiral Flute
Shank Dia.
3.50mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P20549-M3
Zoro #
G2523479
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
57.00mm
Shank Dia.
3.50mm
Tap Dimension Type
Metric
Tap Size
M3
Thread Length
6.00mm
Tap Thread Size
M3-0.50
55% Thread Drill Size
#37
Shank Length
38.00 mm
Thread Size
M3x0.5
65% Thread Drill Size
#38
75% Thread Drill Size
2.50mm
Square Size
2.70mm
Drill Bit Size
2.50mm
Pitch Diameter Limit
7G

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Plug
Tap Material
High Speed Steel
Number of Flutes
3
Tap Finish
Uncoated
Thread Direction
Right Hand
Tap Thread Type
Metric Coarse
Standards
DIN 371
Cutting Direction - Machining
Right Hand
Series
Paradur X·pert P
Thread Standard
Metric Coarse
Spiral Direction
Right Hand
Extended Neck
Yes
Secondary Material Application
Aluminum, Brass, Bronze, Composite, Copper
Secondary Material Application ISO Code
N, O
Primary Material Application ISO Code
P
Features
For Long Chipping Materials
Thread Limit
7G
Primary Material Application
Steel
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Thread Pitch
0.50mm
Helix Angle
45 Degrees
Shank Type - Machining
Straight
Tap Shank Standard
DIN 371
List Number
P20549
Number of Pieces
1

Description

Spiral Flute Tap, Thread Size M3x0.5, Metric, Overall Length 56 mm, High Speed Steel, Bright (Uncoated), Thread Length 6 mm, 75 Percent Thread Drill Size 2.50mm, Thread Limit 7G, Class of Fit 7G, Thread Direction Right Hand, Number of Flutes 3
