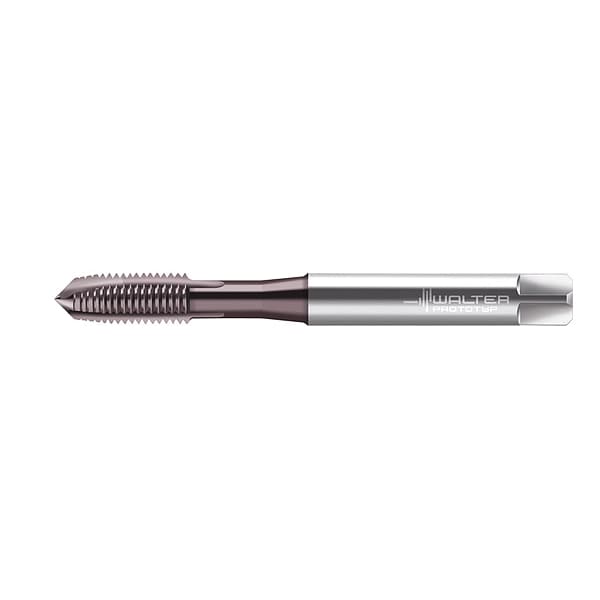

Spiral Point Tap, Taper, 3
Mfr # AEP2321002-UNF5/16
Zoro # G2567518
product price:Â
$
91.49
/ea
Key Features
Shank Dia.
5/16"
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
5/16"
Tap Chamfer
Taper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AEP2321002-UNF5/16
- Zoro #
- G2567518
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Shank Dia.
- 5/16"
- Tap Size
- 5/16"
- Tap Dimension Type
- Inch
- Overall Length
- 3-11/16"
- Tap Thread Size
- 5/16"-24
- Thread Length
- 11/16"
- Shank Length
- 55.00 mm
- Drill Bit Size
- 0.2720 in
- 55% Thread Drill Size
- 9/32 in
- Tap Length Standard
- DIN
- Square Size
- 6.05 mm
- Thread Size
- 5/16"-24
- 65% Thread Drill Size
- J
- 75% Thread Drill Size
- I
- Pitch Diameter Limit
- 2B
- Shank Diameter
- 8.08 mm
- Square Width
- 6.05 mm
- Square Length
- 6.05 mm
- Wire Rope Length
- 90 mm
- Length
- 90 mm
Description
Spiral Point Tap, Thread Size 5/16 In.-24, UNF, Overall Length 90 mm, High Speed Steel, THL, Right Hand, Thread Length 18 mm, 75 Percent Thread Drill Size I, Thread Limit H3/H4, Class of Fit H3, Number of Flutes 3
