Shop WALTER

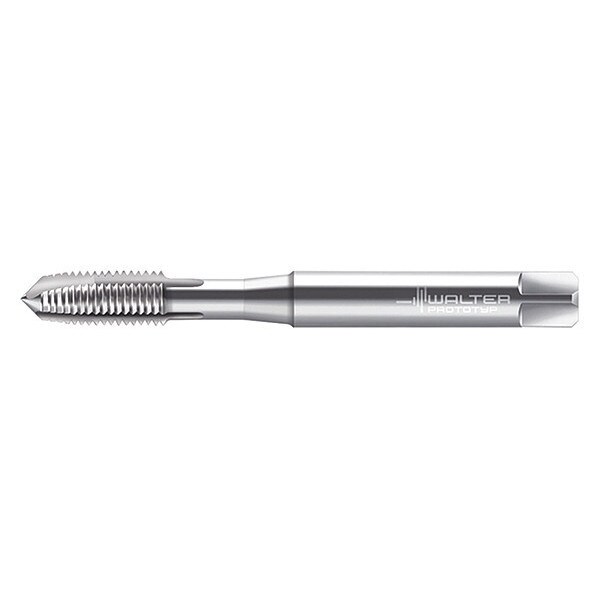

Spiral Point Tap, Taper, 3

  • Mfr # P203009-EGM2.5

  • Zoro # G2520837

product price:  $41.39
/ea

Key Features

Shank Dia.
3.50mm
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
M2.5
Tap Chamfer
Taper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P203009-EGM2.5
Zoro #
G2520837
UPC #
-
Country of Origin
Germany

Dimensions

Shank Dia.
3.50mm
Tap Size
M2.5
Tap Dimension Type
Metric
Overall Length
57.30mm
Pitch Diameter Limit
6HMOD
Thread Length
9.00mm
Tap Thread Size
M2.5-0.45
55% Thread Drill Size
#44
Shank Length
38.00 mm
65% Thread Drill Size
2.10 mm
Square Size
2.70 mm
Thread Size
M2.5x0.45
75% Thread Drill Size
#46
Shank Diameter
3.5 mm
Square Length
2.7 mm
Square Width
2.7 mm
Wire Rope Length
56 mm

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Taper
Number of Flutes
3
Tap Thread Type
EGM
Thread Direction
Right Hand
Tap Finish
Uncoated
Number of Pieces
1
List Number
P203009
Cutting Direction - Machining
Right Hand
Series
Prototex X·pert P
Thread Limit
6HMOD
Thread Standard
Metric
Thread Pitch
0.45mm
Material Grade - Machining
Vanadium High Speed Steel
Features
For Long-Chipping Materials
Spiral Direction
Neutral
Shank Type - Machining
Straight
Primary Material Application ISO Code
P
Coolant Fed
Non-Coolant Through
Primary Material Application
Steel
Class of Fit
6HMOD
Measurement System
Metric
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Secondary Material Application ISO Code
N, O
Helix Angle
0 Degrees
Shank Type
Straight

Description

Screw Thread Insert STI Tap, Thread Size M2.5x0.45, Metric, Overall Length 56 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 9 mm, Tap Chamfer Plug, Thread Limit 6HMOD, Class of Fit 6HMOD, Number of Flutes 3
