Shop All Indexable Milling Inserts
Walter

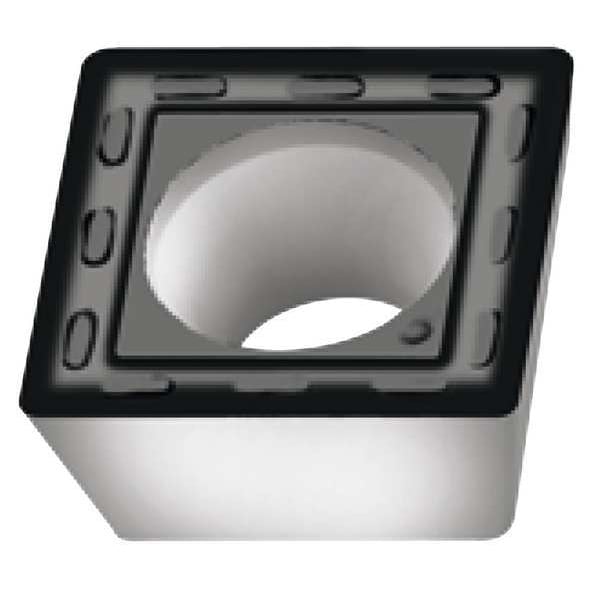

Square SPMW Carbide

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Item: Square Milling Insert
  • Insert Shape: Square
  • Insert Style: SPMW
  • Insert Size: 120408
  • For Use With: F2339 Ball Nose Mill
  • Chip-Breaker: Yes
  • Grade: WKP25S
  • Insert Application: Roughing
See full product details
$15.88
Must order in multiples of 10
Ships from United States
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Walter #SPMW120408T-A27 WKP25S Specifications

  • Item: Square Milling Insert
  • Insert Shape: Square
  • Insert Style: SPMW
  • Insert Size: 120408
  • For Use With: F2339 Ball Nose Mill
  • Chip-Breaker: Yes
  • Grade: WKP25S
  • Insert Application: Roughing
  • Workpiece Compatibility: Cast Iron (K), Steel (P)
  • Insert Material: Carbide
  • Coating: CVD
  • Corner Radius: 1/32 in
  • No. of Edges: 4
  • Inscribed Circle: 1/2 in
  • Stainless (M) Compatibility: No
  • Steel (P) Compatibility: Yes
  • Insert Thickness: 0.187"
  • Nose Radius: 0.031"
  • Hardened (H) Compatibility: No
  • Mounting Style: Screw Held
  • Super Alloy (S) Compatibility: No
  • Non Ferrous (N) Compatibility: No
  • ANSI Number: SPMW120408T-A27 WKP25S
  • Rake: Positive
  • Cutting Direction: Right Hand
  • Cast Iron (K) Compatibility: Yes
  • ISO Number: SPMW120408T-A27 WKP25S
  • Thickness: 0.187 in
  • Manufacturer Grade: WKP25S
  • Primary Material Application: Cast Iron, Steel
  • Included Angle: 90 Degrees
  • For Toolholder: F2339.T14.016.Z02.24, F2339.T18.020.Z02.28, F2339.T22.025.Z02.32, F2339.T28.030.Z02.42, F2339.T28.032.Z02.43, F2339.W16.016.Z02.24, F2339.W20.016.Z02.24, F2339.W20.020.Z02.28, F2339.W25.025.Z02.32, F2339.W32.030.Z02.42, F2339.W32.032.Z02.43, F2339.W40.040.Z02.57, F2339.Z25.020.Z02.28, F2339.Z32.025.Z02.32, F2339.Z40.030.Z02.42, F2339.Z40.032.Z02.43
  • Measurement System: Metric
  • Cutting Edge Length: 12.70mm
  • Hole Type: Countersink Hole
  • Finish - Machining: TiCN+Al2O3+TiCN
  • Insert Holding Type: Screw Held
  • Number of Cutting Edges: 4
  • Chip-Breaker Code: A27
  • Chip-Breaker Style: 0 Degrees Chipbreaker Groove
  • ANSI Code: SPMW120408T-A27 WKP25S
  • Primary Material Application ISO Code: K, P
  • Cutting Application: Milling
  • Coating Process: CVD
  • Shape: Square
  • Material - Machining: Carbide
  • Clearance Angle: 11 Degrees
  • Feed Type: High
  • Country of Origin (subject to change): Germany

Description

Square Milling Insert, Inscribed Circle 1/2 in, Rake Positive
