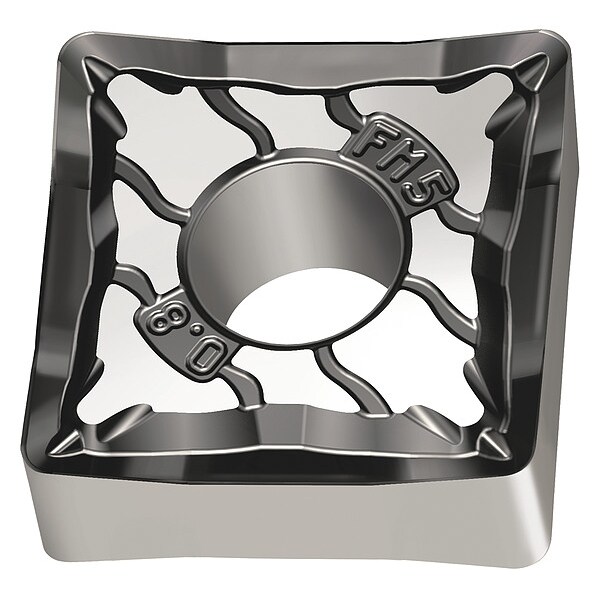

Square Turning Insert, 4, SNMG, 3
Mfr # SNMG120412-FM5 WMP20S
Zoro # G2917969
product price: $16.39
/eaSold in multiples of 10 for $163.90
Key Features
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
3
Rake
Negative
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SNMG120412-FM5 WMP20S
Zoro #
G2917969
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
3
Thickness
3/16 in
Cutting Edge Length
12.70mm
Details
Item
Square Turning Insert
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
SNMG120412-FM5
Cutting Direction
Neutral
Coating Process
CVD
Measurement System
Fractional Inch
Chip-Breaker Code
FM5
Finish - Machining
TiCN+Al2O3+(TiCN)
Clearance Angle
0 Degrees
Shape
Square
ANSI Code
SNMG433-FM5
Manufacturer Grade
WMP20S
Material - Machining
Carbide
Description
Square Turning Insert, Chip-Breaker Code FM5, Inscribed Circle 1/2 in, TiCN+Al2O3+(TiCN)
