  11. Square Turning Insert, Square, 4, SCGT, 2, Carbide

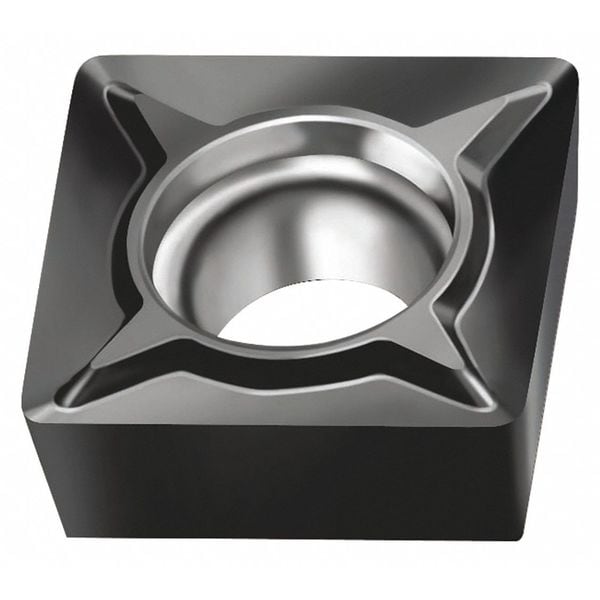

Walter Square Turning Insert, Square, 4, SCGT, 2, Carbide SCGT120408-FN2 WNN10 - main

Square Turning Insert, Square, 4, SCGT, 2, Carbide

  • Mfr # SCGT120408-FN2 WNN10

  • Zoro # G4836559

product price: $24.19
/ea
Sold in multiples of 10 for $241.90

Key Features

Insert Shape
Square
Insert Style
SCGT
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SCGT120408-FN2 WNN10
Zoro #
G4836559
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.031"
Mounting Hole Dia.
0.217"
Insert Thickness
0.1880"
Cutting Edge Length
12.70mm
Thickness
3/16 in
Depth of Cut
0.30 to 3.00mm

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SCGT
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WNN10
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
SCGT120408-FN2
No. of Edges
4
Super Alloy (S) Compatibility
Yes
Mounting Style
Screw
ANSI Number
SCGT432-FN2 WNN10
Relief Angle
7 Degrees
Workpiece Compatibility
Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
No
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
Yes
Coating
Uncoated
Finish - Machining
TiAlN
Chip-Breaker Code
FN2
Cutting Application
Turning
Primary Material Application ISO Code
N
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Manufacturer Grade
WNN10
Included Angle
90 Degrees
Number of Cutting Edges
4
Measurement System
Fractional Inch
Clearance Angle
7 Degrees
Material - Machining
Carbide
Shape
Square
ANSI Code
SCGT432-FN2
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code FN2, Inscribed Circle 1/2 in, TiAlN
