  11. Square Turning Insert, Square, 4, SNGA, 2, Ceramic

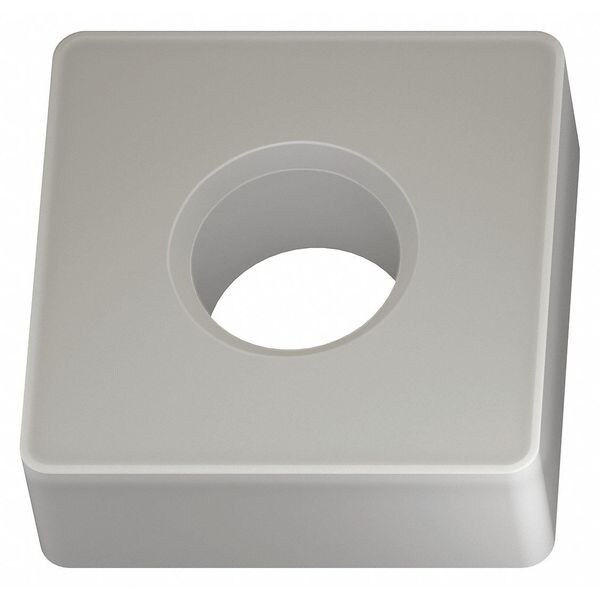

Walter Square Turning Insert, Square, 4, SNGA, 2, Ceramic SNGA120408T02020 WCK10 - main

Square Turning Insert, Square, 4, SNGA, 2, Ceramic

  • Mfr # SNGA120408T02020 WCK10

  • Zoro # G4814518

product price: $34.59
/ea
Sold in multiples of 10 for $345.90

Key Features

Insert Shape
Square
Insert Style
SNGA
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNGA120408T02020 WCK10
Zoro #
G4814518
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Nose Radius
0.031"
Insert Thickness
0.1880"
Depth of Cut
0.10 to 5.00mm
Cutting Edge Length
12.70mm
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNGA
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WCK10
Insert Material
Ceramic
Insert Application
Roughing
Rake
Negative
ISO Number
SNGA120408T02020
Relief Angle
0 Degrees
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
Yes
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
No
No. of Edges
8
For Use With
Toolholders, Boring Bars
Coating
Uncoated
Mounting Style
Clamp
ANSI Number
SNGA432T02020 WCK10
Workpiece Compatibility
Cast Iron (K)
Steel (P) Compatibility
No
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Shape
Square
Insert Holding Type
Straight Hole
Manufacturer Grade
WCK10
Material - Machining
Ceramic
Cutting Edge
Chamfered
Chip-Breaker Code
T02020
Measurement System
Fractional Inch
Cutting Application
Turning
Number of Cutting Edges
8
Clearance Angle
0 Degrees
ANSI Code
SNGA432T02020
Chamfer Angle
20 Degrees
Primary Material Application ISO Code
K
Primary Material Application
Cast Iron
Material Grade - Machining
Silicon Nitride Si3N4
Included Angle
90 Degrees
Material
Ceramic

Description

Square Turning Insert, Chip-Breaker Code T02020, Inscribed Circle 1/2 in
