  11. Square Turning Insert, Square, 5, SNMG, 3, Carbide

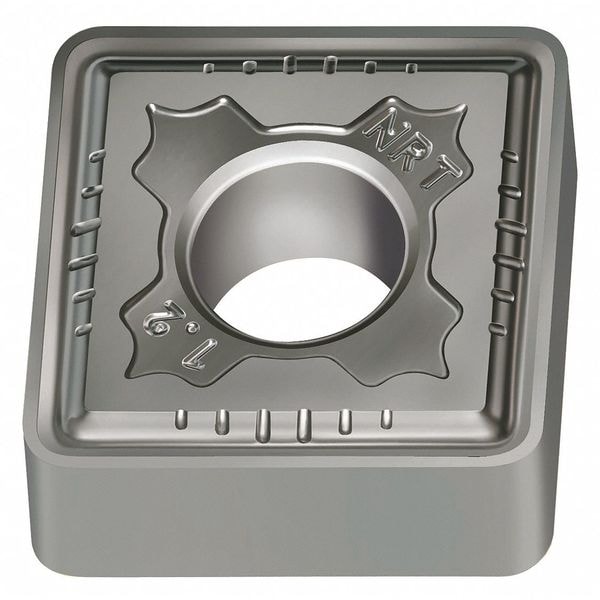

Walter Square Turning Insert, Square, 5, SNMG, 3, Carbide SNMG150612-NRT WSM20S - main

Square Turning Insert, Square, 5, SNMG, 3, Carbide

  • Mfr # SNMG150612-NRT WSM20S

  • Zoro # G4875311

product price: $27.89
/ea
Sold in multiples of 10 for $278.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
5
Insert Size
544
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG150612-NRT WSM20S
Zoro #
G4875311
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
544
Corner Radius
3
Insert Thickness
0.2500"
Nose Radius
0.047"
Mounting Hole Dia.
0.250"
Cutting Edge Length
15.88mm
Depth of Cut
1.00 to 7.50mm
Thickness
1/4 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
WSM20S
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
SNMG150612-NRT
Super Alloy (S) Compatibility
Yes
Stainless (M) Compatibility
Yes
No. of Edges
8
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Mounting Style
Clamp
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
ANSI Number
SNMG544-NRT WSM20S
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Coating
PVD
Relief Angle
0 Degrees
Chip-Breaker Code
NRT
Finish - Machining
TiAlN+Al2O3+Al
ANSI Code
SNMG544-NRT
Material - Machining
Carbide
Measurement System
Fractional Inch
Cutting Application
Turning
Coating Process
PVD
Number of Cutting Edges
8
Shape
Square
Manufacturer Grade
WSM20S
Primary Material Application
Nickel, Stainless Steel, Titanium
Insert Holding Type
Straight Hole
Included Angle
90 Degrees
Primary Material Application ISO Code
M, S
Clearance Angle
0 Degrees
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code NRT, Inscribed Circle 5/8 in, TiAlN+Al2O3+Al
