  11. Straight Flute Hand Tap, M16-1.50, Modified Bottoming, 6 Flutes, UNC

This item is Discontinued.

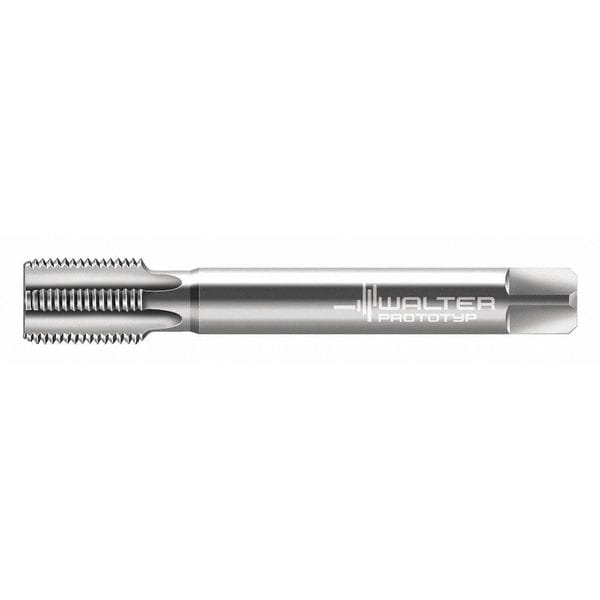

Walter Straight Flute Hand Tap, M16-1.50, Modified Bottoming, 6 Flutes, UNC 213614-M16X1.5

Straight Flute Hand Tap, M16-1.50, Modified Bottoming, 6 Flutes, UNC (Discontinued)

  • Mfr # 213614-M16X1.5
  • Zoro # G2894689
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
213614-M16X1.5
Zoro #
G2894689
UPC #
-
Country of Origin
India

Dimensions

Tap Thread Size
M16-1.50
Pitch Diameter Limit
6HX
Thread Length
21.00mm
Shank Dia.
12.00mm
Overall Length
100.00mm
Tap Dimension Type
Metric
Tap Size
M16
75% Thread Drill Size
14.50 mm
Thread Size
M16x1.5
55% Thread Drill Size
14.90 mm
65% Thread Drill Size
14.70 mm
Square Size
9.00 mm
Shank Length
42.00 mm
Tap Length Standard
DIN 374

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Modified Bottoming
Number of Flutes
6
Tap Thread Type
UNC
Tap Material
High Speed Steel
Thread Direction
Right Hand
Tap Style
Straight Flute (Hand)
Tap Finish
Uncoated
Number of Pieces
1
Standards
DIN 374
List Number
213614
Cutting Direction - Machining
Right Hand
Series
Paradur HN
Thread Standard
Metric Fine
Extended Neck
Yes
Primary Material Application ISO Code
K, N, P
Measurement System
Metric
Shank Type - Machining
Straight
Thread Pitch
1.50mm
Tap Shank Standard
DIN 374
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Limit
6HX
Coolant Fed
Non-Coolant Through
Spiral Direction
Neutral
Helix Angle
0 Degrees

Description

Straight Flute Tap, Thread Size M16x1.5, Metric, Bottoming, Overall Length 100 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 21 mm, 75 Percent Thread Drill Size 14.50 mm, Thread Limit 6HX
