  11. Straight Flute Hand Tap, M30-1.50, Plug, 5 Flutes, Metric Fine

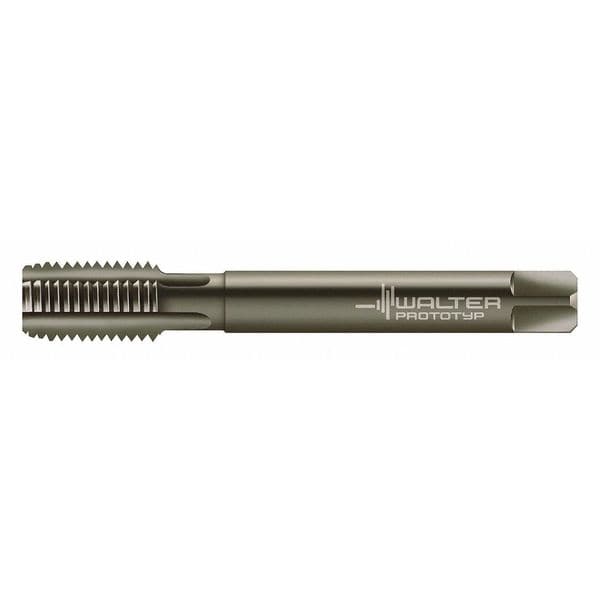

Walter Straight Flute Hand Tap, M30-1.50, Plug, 5 Flutes, Metric Fine E21364-M30X1.5 - main

Straight Flute Hand Tap, M30-1.50, Plug, 5 Flutes, Metric Fine

  • Mfr # E21364-M30X1.5

  • Zoro # G2510063

product price: $268.99
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
M30-1.50
Tap Chamfer
Plug
Number of Flutes
5
Tap Thread Type
Metric Fine
Thread Length
26.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E21364-M30X1.5
Zoro #
G2510063
UPC #
-
Country of Origin
Germany

Dimensions

Tap Thread Size
M30-1.50
Thread Length
26.00mm
Tap Dimension Type
Metric
Shank Dia.
22.00mm
Pitch Diameter Limit
6HX
Overall Length
150.00mm
Tap Size
M30
Thread Size
M30x1.5
75% Thread Drill Size
28.54 mm
65% Thread Drill Size
28.73 mm
Shank Length
65.00 mm
Square Size
18.00 mm
Tap Length Standard
DIN 374

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Number of Flutes
5
Tap Thread Type
Metric Fine
Tap Finish
Steam Oxide/Nitride
Tap Material
High Speed Steel
Thread Direction
Right Hand
Number of Pieces
1
List Number
E21364
Tap Style
Straight Flute (Hand)
Standards
DIN 374
Cutting Direction - Machining
Right Hand
Series
Paradur Eco CI
Primary Material Application ISO Code
K, N, O
Tap Shank Standard
DIN 374
Thread Limit
6HX
Spiral Direction
Neutral
Thread Standard
Metric Fine
Extended Neck
Yes
Measurement System
Metric
Thread Pitch
1.50mm
Shank Type - Machining
Straight
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Composite, Copper
Coolant Fed
Non-Coolant Through
Helix Angle
0 Degrees

Description

Straight Flute Tap, Thread Size M30x1.5, Metric, Modified Bottoming, Overall Length 150 mm, High Speed Steel, Black Oxide, Right Hand, Thread Length 26 mm, 75 Percent Thread Drill Size 28.54 mm, Thread Limit 6HX
