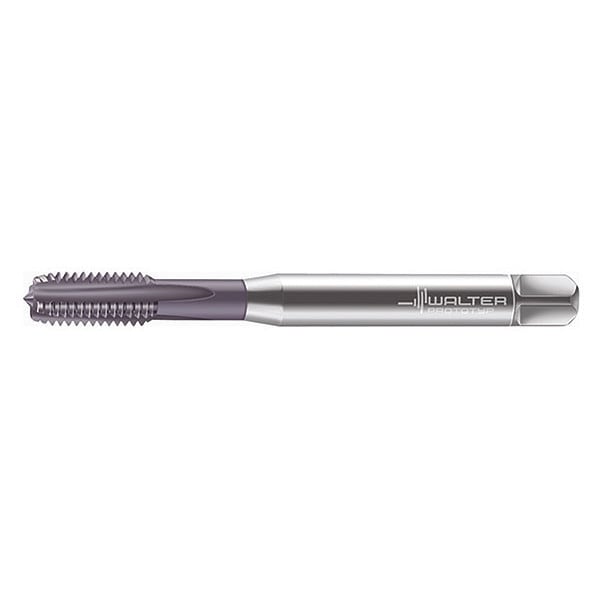

Walter Straight Flute Hand Tap, Plug, 3 K2031407-M3 - main
Shop WALTER

Straight Flute Hand Tap, Plug, 3

  • Mfr # K2031407-M3

  • Zoro # G2515237

product price:  $58.49
/ea

Key Features

Shank Dia.
3.50mm
Tap Chamfer
Plug
Tap Dimension Type
Metric
Tap Material
High Speed Steel
Tap Size
M3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K2031407-M3
Zoro #
G2515237
UPC #
-
Country of Origin
Germany

Dimensions

Shank Dia.
3.50mm
Tap Dimension Type
Metric
Tap Size
M3
Overall Length
60.50mm
Thread Length
9.00mm
Tap Thread Size
M3-0.50
Pitch Diameter Limit
6HX
Tap Length Standard
DIN 371
75% Thread Drill Size
2.50 mm
Thread Size
M3x0.5
Shank Length
39.00 mm
Square Size
2.70 mm
55% Thread Drill Size
#37
65% Thread Drill Size
#38
Square Length
2.7 mm
Shank Diameter
3.5 mm
Square Width
2.7 mm

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
Standards
DIN 371
List Number
K2031407
Tap Thread Type
Metric Coarse
Thread Direction
Right Hand
Tap Finish
TAFT
Number of Pieces
1
Cutting Direction - Machining
Right Hand
Series
Paradur X·pert K
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Extended Neck
Yes
Thread Standard
Metric
Secondary Material Application ISO Code
N
Shank Type - Machining
Straight
Thread Pitch
0.50mm
Thread Limit
6HX
Spiral Direction
Neutral
Coolant Fed
Non-Coolant Through
Measurement System
Metric
Primary Material Application
Cast Iron
Primary Material Application ISO Code
K
Tap Shank Standard
DIN 371
Helix Angle
0 Degrees
Shank Type
Straight

Description

Straight Flute Tap, Thread Size M3x0.5, Metric, Modified Bottoming, Overall Length 56 mm, High Speed Steel, TAFT, Right Hand, Thread Length 9 mm, 75 Percent Thread Drill Size 2.50 mm
