  11. Triangle P23696 Carbide

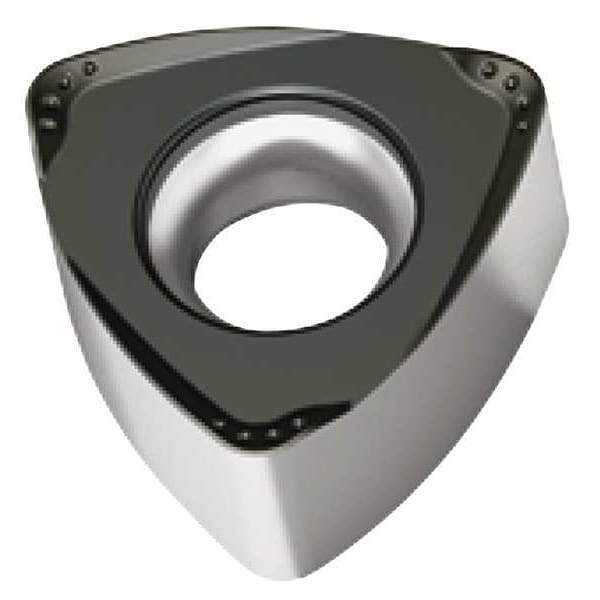

Walter Triangle P23696 Carbide P23696-1.0 WKP35S - main

Triangle P23696 Carbide

  • Mfr # P23696-1.0 WKP35S

  • Zoro # G8326096

product price: $35.39
/ea
Sold in multiples of 10 for $353.90

Key Features

Insert Style
P23696
Insert Shape
Triangle
Insert Size
1
Insert Material
Carbide
Corner Radius
3/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P23696-1.0 WKP35S
Zoro #
G8326096
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
1
Corner Radius
3/64 in
Nose Radius
0.047"
Insert Thickness
0.197"
Thickness
0.197 in

Details

Item
Triangle Milling Insert
Insert Style
P23696
Insert Shape
Triangle
Insert Material
Carbide
Stainless (M) Compatibility
No
Insert Application
Medium
Inscribed Circle
3/8 in
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Rake
Negative
ANSI Number
P23696-1.0 WKP35S
Coating
CVD
Cutting Direction
Right Hand
Hardened (H) Compatibility
No
No. of Edges
6
Mounting Style
Screw Held
Workpiece Compatibility
Cast Iron (K), Steel (P)
Super Alloy (S) Compatibility
No
For Use With
F4030 High-Performance Milling Cutter
Cast Iron (K) Compatibility
Yes
Grade
WKP35S
Chip-Breaker
Yes
ISO Number
P23696-1.0 WKP35S
Primary Material Application
Cast Iron, Steel
ANSI Code
P23696-1.0 WKP35S
Finish - Machining
TiCN+Al2O3+TiCN
Clearance Angle
0 Degrees
Coating Process
CVD
Primary Material Application ISO Code
K, P
Secondary Material Application ISO Code
M
Cutting Application
Milling
Material - Machining
Carbide
Insert Holding Type
Screw Held
Shape
Triangle
Measurement System
Metric
Chip-Breaker Style
16 Degrees Chipbreaker Groove
Secondary Material Application
Stainless Steel
Number of Cutting Edges
6
For Toolholder
F2010.B.080.Z06.10.R441M, F2010.B.100.Z07.10.R441M, F2010.B.125.Z08.10.R441M, F2010.B.160.Z10.10.R441M, F2010.B.200.Z12.10.R441M, F2010.B.250.Z12.10.R441M, F2010.B.250.Z16.10.R441M, F2010.B.315.Z14.10.R441M, F2010.B.315.Z18.10.R441M, F2235.B.050.Z04.10, F2235.B.063.Z05.10, F2235.B.080.Z06.10, F2235.B.100.Z07.10, F2235.W.032.Z02.10, F2235.W.040.Z03.10
Manufacturer Grade
WKP35S
Included Angle
80 Degrees
Chip-Breaker Code
F55

Description

Triangle Milling Insert, Inscribed Circle 3/8 in, Negative
