  11. Triangle Turning Insert, Triangle, 7/32 in, TPGT, 0.4 mm, Carbide

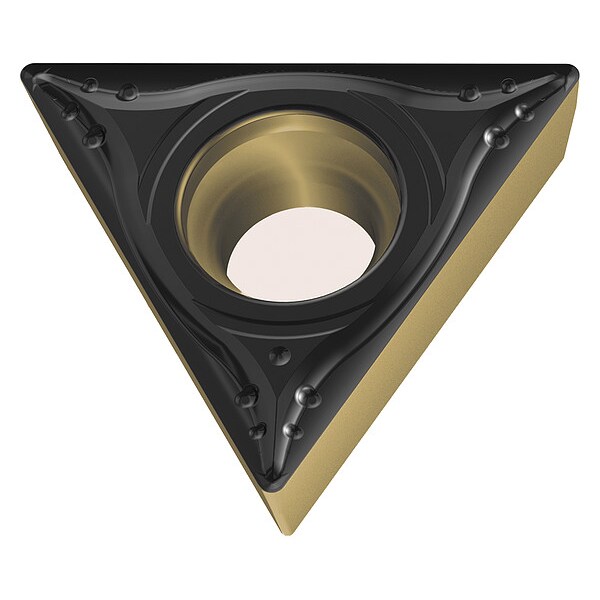

Walter Triangle Turning Insert, Triangle, 7/32 in, TPGT, 0.4 mm, Carbide TPGT090204-MM4 WSM01 - main

Triangle Turning Insert, Triangle, 7/32 in, TPGT, 0.4 mm, Carbide

  • Mfr # TPGT090204-MM4 WSM01

  • Zoro # G4813562

product price: $20.99
/ea
Sold in multiples of 10 for $209.90

Key Features

Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
7/32 in
Insert Size
1.81.51
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPGT090204-MM4 WSM01
Zoro #
G4813562
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
1.81.51
Corner Radius
0.4 mm
Mounting Hole Dia.
0.098"
Nose Radius
0.016"
Insert Thickness
0.0940"
Through Hole Inside Dia.
2.5 mm
Cutting Edge Length
9.62 mm
Depth of Cut
0.40 mm to 2.00 mm
Thickness
2.38 mm

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPGT
Inscribed Circle
7/32 in
Chip-Breaker
Yes
Grade
WSM01
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
TPGT090204-MM4 WSM01
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
Yes
No. of Edges
3
Super Alloy (S) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
Yes
Coating
Uncoated
Relief Angle
11 Degrees
ANSI Number
TPGT1.8(1.5)1 WSM01
Mounting Style
Screw
Cutting Direction
Neutral
Workpiece Compatibility
Hardened (H), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Chip-Breaker Code
MM4
ANSI Code
TPGT1.8(1.5)1 WSM01
Included Angle
60 Degrees
Number of Cutting Edges
3
Shape
Triangle
Primary Material Application
Nickel, Stainless Steel, Titanium
Cutting Application
Turning
Material - Machining
Carbide
Primary Material Application ISO Code
M, S
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Manufacturer Grade
WSM01
Clearance Angle
11 Degrees
Measurement System
Metric
Finish - Machining
TiAlN
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code MM4, Inscribed Circle 7/32 in, TiAlN
