  11. Turning Insert, Trigon, 1/2 in, WNMG, 1.20mm, Carbide

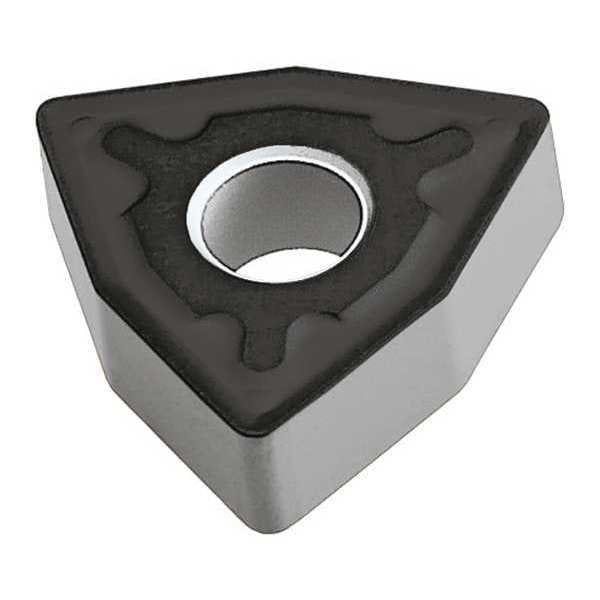

Walter Turning Insert, Trigon, 1/2 in, WNMG, 1.20mm, Carbide WNMG080412-NM WKK20S - main

Turning Insert, Trigon, 1/2 in, WNMG, 1.20mm, Carbide

  • Mfr # WNMG080412-NM WKK20S

  • Zoro # G7932106

product price: $18.79
/ea
Sold in multiples of 10 for $187.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG080412-NM WKK20S
Zoro #
G7932106
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.0470"
Insert Thickness
0.1880"
Mounting Hole Dia.
0.203"
Depth of Cut
1.50 to 4.00mm
Cutting Edge Length
8.70mm
Thickness
3
Through Hole Inside Dia.
5.16mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WKK20S
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMG080412-NM WKK20S
Super Alloy (S) Compatibility
No
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
No
Coating
CVD
ANSI Number
WNMG433
No. of Edges
2
For Use With
Toolholders, Boring Bars
Relief Angle
0 Degrees
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Steel (P)
Mounting Style
Clamp
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Chip-Breaker Code
NM
Primary Material Application ISO Code
K
Clearance Angle
0 Degrees
Finish - Machining
TiCN+Al2O3+TiCN
Cutting Application
Medium Machining, Turning
Primary Material Application
Cast Iron
Wiper Insert
Yes
Manufacturer Grade
WKK20S
Insert Holding Type
Straight Hole
Included Angle
80 Degrees
Feed Type
High
Measurement System
Metric
ANSI Code
WNMG433-NM WKK20S
Material - Machining
Carbide
Shape
Trigon
Coating Process
CVD
Material
Carbide

Description

Turning Insert, Chip-Breaker Code NM, Inscribed Circle 1/2 in, TiCN+Al2O3+TiCN

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
