  11. Turning Insert, Trigon, 2, WCMT, 1, Carbide

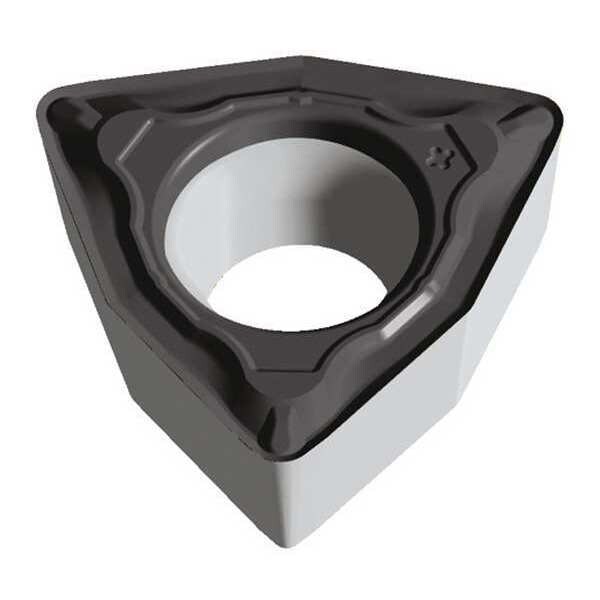

Walter Turning Insert, Trigon, 2, WCMT, 1, Carbide WCMT040204-PF WPP20S - main

Turning Insert, Trigon, 2, WCMT, 1, Carbide

  • Mfr # WCMT040204-PF WPP20S

  • Zoro # G7929330

product price: $14.79
/ea
Sold in multiples of 10 for $147.90

Key Features

Insert Shape
Trigon
Insert Style
WCMT
Inscribed Circle
2
Insert Size
21.51
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WCMT040204-PF WPP20S
Zoro #
G7929330
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
21.51
Corner Radius
1
Nose Radius
0.0160"
Mounting Hole Dia.
0.110"
Insert Thickness
0.0940"
Through Hole Inside Dia.
2.80mm
Depth of Cut
0.30 to 1.50mm
Cutting Edge Length
4.30mm
Thickness
1.5

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WCMT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
WPP20S
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
WCMT040204-PF WPP20S
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Mounting Style
Screw
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Relief Angle
7 Degrees
Workpiece Compatibility
Cast Iron (K), Steel (P)
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
No
For Use With
Toolholders, Boring Bars
No. of Edges
2
Cutting Direction
Neutral
Coating
PVD
ANSI Number
WCMT2(1.5)1
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Chip-Breaker Code
PF
Coating Process
CVD
Cutting Application
Finishing, Turning
Wiper Insert
Yes
Manufacturer Grade
WPP20S
Secondary Material Application
Cast Iron
Primary Material Application
Steel
Material - Machining
Carbide
Included Angle
80 Degrees
Measurement System
Metric
Primary Material Application ISO Code
P
Clearance Angle
7 Degrees
Feed Type
High
Secondary Material Application ISO Code
K
Finish - Machining
TiCN+Al2O3+TiCN
Shape
Trigon
ANSI Code
WCMT2(1.5)1-PF WPP20S
Material
Carbide

Description

Turning Insert, Chip-Breaker Code PF, Inscribed Circle 1/4 in, TiCN+Al2O3+TiCN
