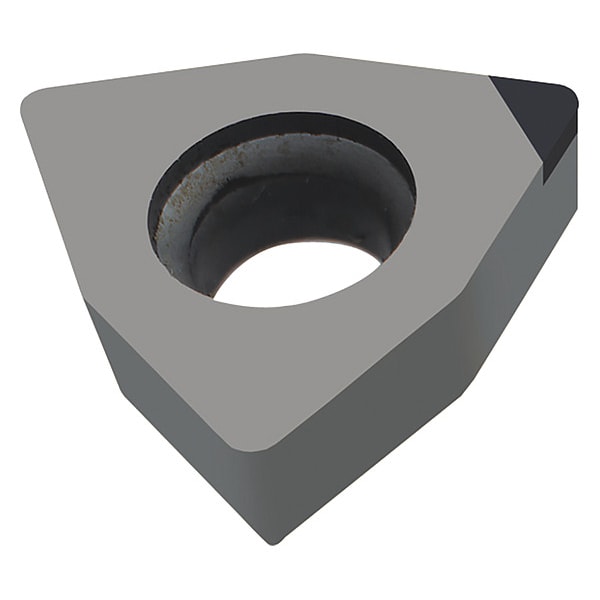

Walter Turning Insert, Trigon, 2, WCMW, .5, Carbide WCMW040202 WCB50 - main

Turning Insert, Trigon, 2, WCMW, .5, Carbide

  • Mfr # WCMW040202 WCB50

  • Zoro # G8047347

product price: $99.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Trigon
Insert Style
WCMW
Inscribed Circle
2
Insert Size
21.50.5
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WCMW040202 WCB50
Zoro #
G8047347
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
21.50.5
Corner Radius
.5
Insert Thickness
0.0937"
Cutting Edge Length
4.30mm
Thickness
1.5

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WCMW
Inscribed Circle
2
Chip-Breaker
Yes
Grade
WCB50
Insert Material
Carbide
Insert Application
Roughing
Rake
Positive
ISO Number
WCMW040202 WCB50
ANSI Number
WCMW2(1.5)0.5
Cutting Direction
Neutral
Steel (P) Compatibility
No
Mounting Style
Screw Clamp
No. of Edges
3
Coating
Uncoated
Relief Angle
7 Degrees
Stainless (M) Compatibility
No
Workpiece Compatibility
Hardened (H)
For Use With
Walter Toolholders and Boring Bars
Hardened (H) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
No
Manufacturer Grade
WCB50
Chip-Breaker Code
A27
Included Angle
80 Degrees
Material - Machining
CBN
Shape
Trigon
Clearance Angle
7 Degrees
Secondary Material Application
Cast Iron
ANSI Code
WCMW2(1.5)0.5 WCB50
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application
Hardened Steel
Feed Type
High
Secondary Material Application ISO Code
K
Cutting Application
Boring
Primary Material Application ISO Code
H
Measurement System
Metric
Material
Carbide

Description

Turning Insert, Chip-Breaker Code A27, Inscribed Circle 1/4 in
