  11. Turning Insert, Trigon, 3/8 in, WCMT, 0.80mm, Carbide

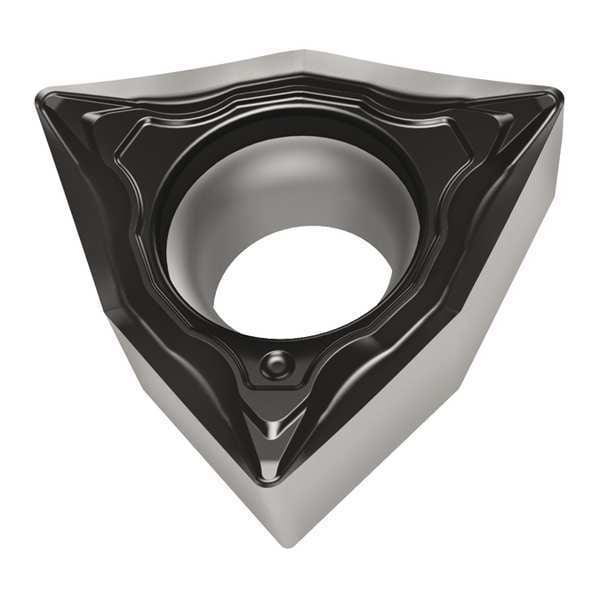

Walter Turning Insert, Trigon, 3/8 in, WCMT, 0.80mm, Carbide WCMT06T308-FP4 WPP20S - main

Turning Insert, Trigon, 3/8 in, WCMT, 0.80mm, Carbide

  • Mfr # WCMT06T308-FP4 WPP20S

  • Zoro # G7929638

product price: $14.19
/ea
Sold in multiples of 10 for $141.90

Key Features

Insert Shape
Trigon
Insert Style
WCMT
Inscribed Circle
3
Insert Size
32.52
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WCMT06T308-FP4 WPP20S
Zoro #
G7929638
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
32.52
Corner Radius
2
Nose Radius
0.0310"
Insert Thickness
0.1560"
Mounting Hole Dia.
0.173"
Through Hole Inside Dia.
4.40mm
Depth of Cut
0.10 to 1.50mm
Thickness
2.5
Cutting Edge Length
6.52mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WCMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
WPP20S
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
WCMT06T308-FP4 WPP20S
Relief Angle
7 Degrees
Workpiece Compatibility
Cast Iron (K), Steel (P)
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
Coating
CVD
Cutting Direction
Neutral
No. of Edges
2
Stainless (M) Compatibility
No
Mounting Style
Screw
Super Alloy (S) Compatibility
No
ANSI Number
WCMT432
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
Secondary Material Application ISO Code
K
Primary Material Application
Steel
Finish - Machining
TiCN+Al2O3+TiCN
Primary Material Application ISO Code
P
ANSI Code
WCMT3(2.5)2-FP4 WPP20S
Coating Process
CVD
Manufacturer Grade
WPP20S
Included Angle
80 Degrees
Material - Machining
Carbide
Shape
Trigon
Clearance Angle
7 Degrees
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Secondary Material Application
Cast Iron
Chip-Breaker Code
FP4
Measurement System
Metric
Cutting Application
Turning
Material
Carbide

Description

Turning Insert, Chip-Breaker Code FP4, Inscribed Circle 3/8 in, TiCN+Al2O3+TiCN
