  11. Turning Insert, Trigon, 4, WNMA, 2, Carbide

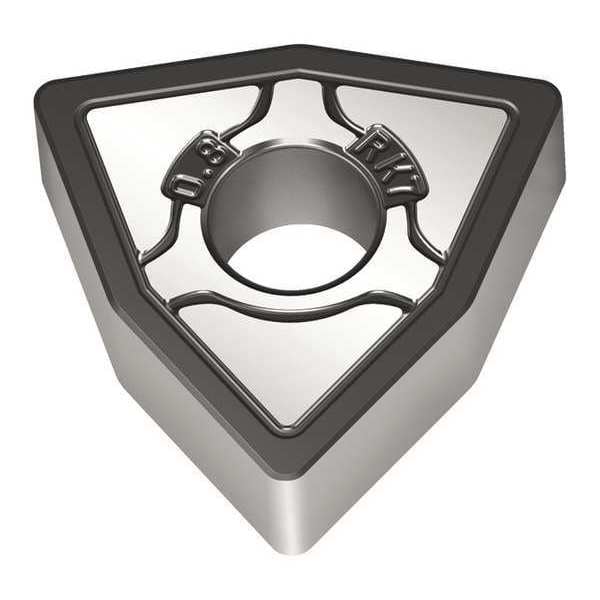

Walter Turning Insert, Trigon, 4, WNMA, 2, Carbide WNMA080408-RK7 WKK10S - main

Turning Insert, Trigon, 4, WNMA, 2, Carbide

  • Mfr # WNMA080408-RK7 WKK10S

  • Zoro # G7930259

product price: $19.35
/ea
Sold in multiples of 10 for $193.50

Key Features

Insert Shape
Trigon
Insert Style
WNMA
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMA080408-RK7 WKK10S
Zoro #
G7930259
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1880"
Mounting Hole Dia.
0.203"
Nose Radius
0.0310"
Through Hole Inside Dia.
5.16mm
Thickness
3
Depth of Cut
1.20 to 5.00mm
Cutting Edge Length
8.70mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMA
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WKK10S
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
WNMA080408-RK7 WKK10S
No. of Edges
2
Relief Angle
0 Degrees
Cast Iron (K) Compatibility
Yes
Mounting Style
Clamp
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
ANSI Number
WNMA332
Hardened (H) Compatibility
Yes
Coating
CVD
Workpiece Compatibility
Cast Iron (K), Hardened (H)
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
No
Stainless (M) Compatibility
No
For Use With
Toolholders, Boring Bars
Material - Machining
Carbide
Chip-Breaker Code
RK7
ANSI Code
WNMA432-RK7 WKK10S
Primary Material Application ISO Code
K
Coating Process
CVD
Cutting Application
Turning
Shape
Trigon
Manufacturer Grade
WKK10S
Primary Material Application
Cast Iron
Clearance Angle
0 Degrees
Finish - Machining
TiCN+Al2O3+TiCN
Measurement System
Metric
Included Angle
80 Degrees
Insert Holding Type
Straight Hole
Material
Carbide

Description

Turning Insert, Chip-Breaker Code RK7, Inscribed Circle 1/2 in, TiCN+Al2O3+TiCN
