  11. Turning Insert, Trigon, 4, WNMG, 1, Carbide

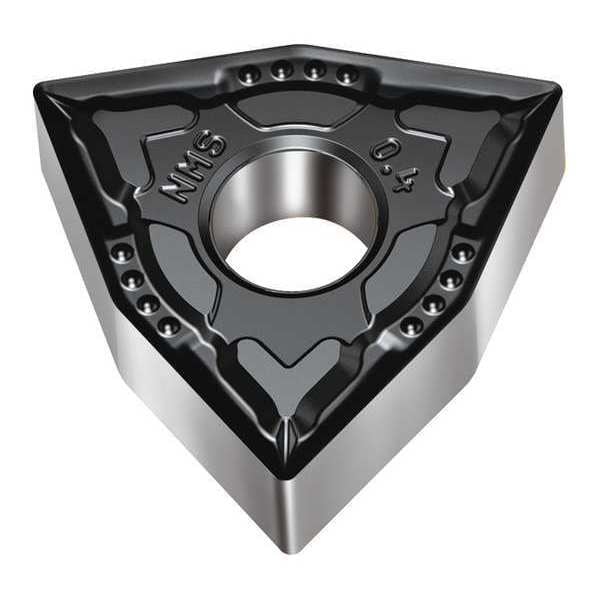

Walter Turning Insert, Trigon, 4, WNMG, 1, Carbide WNMG080404-NMS WSM01 - main

Turning Insert, Trigon, 4, WNMG, 1, Carbide

  • Mfr # WNMG080404-NMS WSM01

  • Zoro # G7931257

product price: $22.15
/ea
Sold in multiples of 10 for $221.50

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG080404-NMS WSM01
Zoro #
G7931257
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
431
Corner Radius
1
Mounting Hole Dia.
0.203"
Nose Radius
0.0160"
Insert Thickness
0.1880"
Thickness
3
Cutting Edge Length
8.70mm
Through Hole Inside Dia.
5.16mm
Depth of Cut
0.60 to 2.50mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WSM01
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMG080404-NMS WSM01
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Hardened (H) Compatibility
No
Coating
PVD
Super Alloy (S) Compatibility
Yes
Cast Iron (K) Compatibility
No
ANSI Number
WNMG432
Relief Angle
0 Degrees
Cutting Direction
Neutral
No. of Edges
2
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Mounting Style
Clamp
ANSI Code
WNMG431-NMS WSM01
Finish - Machining
TiAlN
Primary Material Application ISO Code
M, S
Insert Holding Type
Straight Hole
Manufacturer Grade
WSM01
Primary Material Application
Nickel, Stainless Steel, Titanium
Chip-Breaker Code
NMS
Included Angle
80 Degrees
Measurement System
Metric
Cutting Application
Turning
Shape
Trigon
Material - Machining
Carbide
Coating Process
PVD
Clearance Angle
0 Degrees
Material
Carbide

Description

Turning Insert, Chip-Breaker Code NMS, Inscribed Circle 1/2 in, TiAlN
