  11. Turning Insert, Trigon, 4, WNMG, 2, Carbide

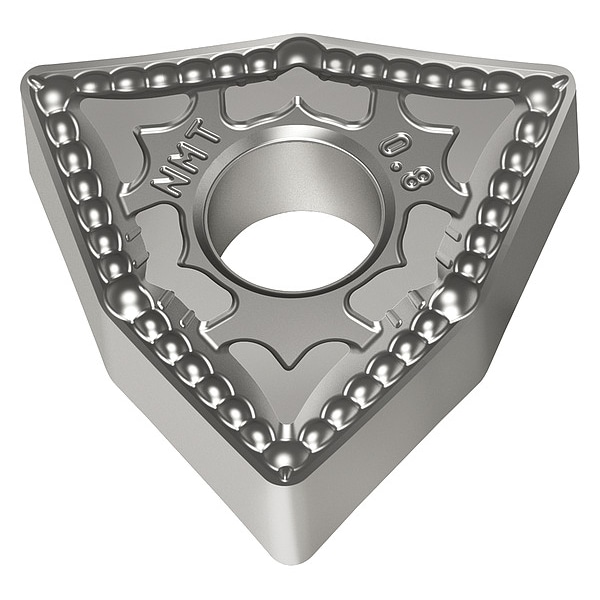

Walter Turning Insert, Trigon, 4, WNMG, 2, Carbide WNMG080408-NMT WS10 - main

Turning Insert, Trigon, 4, WNMG, 2, Carbide

  • Mfr # WNMG080408-NMT WS10

  • Zoro # G9687264

product price: $13.19
/ea
Sold in multiples of 10 for $131.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG080408-NMT WS10
Zoro #
G9687264
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.0310"
Cutting Edge Length
8.70mm
Depth of Cut
0.80 to 4.00mm
Thickness
3
Through Hole Inside Dia.
5.16mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WS10
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMG080408-NMT WS10
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Coating
Uncoated
ANSI Number
WNMG432-NMT
For Use With
Walter Toolholders and Boring Bars
Mounting Style
Screw Clamp
No. of Edges
6
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
Yes
Relief Angle
0 Degrees
Workpiece Compatibility
Super Alloy (S)
Steel (P) Compatibility
No
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
ANSI Code
WNMG432-NMT WS10
Primary Material Application ISO Code
S
Cutting Application
Turning
Number of Cutting Edges
6
Chip-Breaker Code
NMT
Included Angle
80 Degrees
Primary Material Application
Nickel, Titanium
Clearance Angle
0 Degrees
Shape
Trigon
Insert Holding Type
Straight Hole
Finish - Machining
Bright (Uncoated)
Measurement System
Metric
Manufacturer Grade
WS10
Material - Machining
Carbide
Material
Carbide

Description

Turning Insert, Chip-Breaker Code NMT, Inscribed Circle 1/2 in, Bright (Uncoated)
