  11. Turning Insert, Trigon, 4, WNMG, 2, Carbide

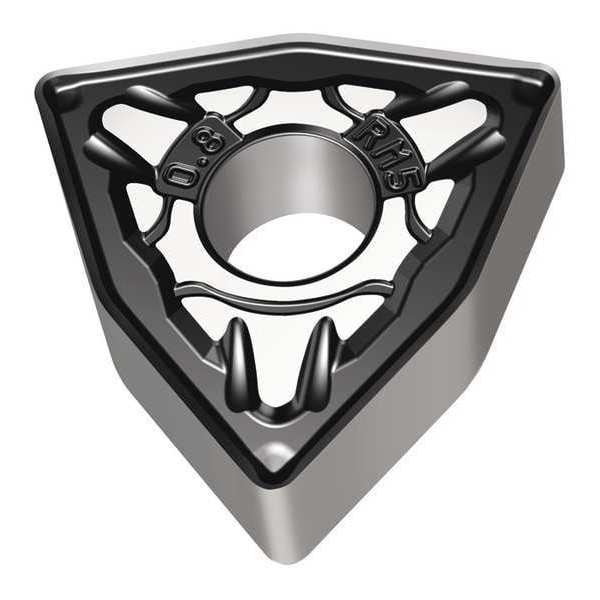

Walter Turning Insert, Trigon, 4, WNMG, 2, Carbide WNMG080408-RM5 WMP20S - main

Turning Insert, Trigon, 4, WNMG, 2, Carbide

  • Mfr # WNMG080408-RM5 WMP20S

  • Zoro # G7931756

product price: $19.65
/ea
Sold in multiples of 10 for $196.50

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG080408-RM5 WMP20S
Zoro #
G7931756
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1880"
Nose Radius
0.0310"
Mounting Hole Dia.
0.203"
Thickness
3
Depth of Cut
1.20 to 4.50mm
Through Hole Inside Dia.
5.16mm
Cutting Edge Length
8.70mm

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WMP20S
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
WNMG080408-RM5 WMP20S
ANSI Number
WNMG433
Hardened (H) Compatibility
No
No. of Edges
2
Super Alloy (S) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Coating
CVD
Stainless (M) Compatibility
Yes
Mounting Style
Clamp
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Cast Iron (K) Compatibility
No
Relief Angle
0 Degrees
Manufacturer Grade
WMP20S
Chip-Breaker Code
RM5
Coating Process
CVD
Shape
Trigon
Cutting Application
Turning
Insert Holding Type
Straight Hole
Primary Material Application ISO Code
M, P
Material - Machining
Carbide
Primary Material Application
Stainless Steel, Steel
ANSI Code
WNMG432-RM5 WMP20S
Included Angle
80 Degrees
Measurement System
Metric
Finish - Machining
TiCN+Al2O3+TiCN
Clearance Angle
0 Degrees
Material
Carbide

Description

Turning Insert, Chip-Breaker Code RM5, Inscribed Circle 1/2 in, TiCN+Al2O3+TiCN
