  9. Walter - Insert Round Pos With Hole
Shop All Milling Inserts
Walter

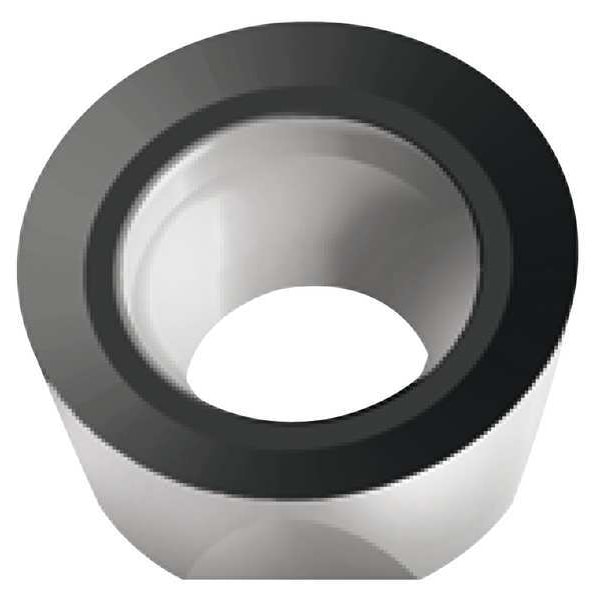

Walter - Insert Round Pos With Hole

product price: $12.19
/ea
Sold in multiples of 10 for $121.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cast Iron (K) Compatibility Yes
  • Insert Material Carbide
  • Steel (P) Compatibility Yes
  • Coating CVD
  • Hardened (H) Compatibility No
See all product information

Product Information

Dimensions

Insert Size 12T3M0
Nose Radius 0.236"
Mounting Hole Dia. 4.40mm
Corner Radius 6.00mm
Cutting Edge Length 12.00mm
Through Hole Inside Dia. 4.40mm

Details

Cast Iron (K) Compatibility Yes
Insert Material Carbide
Steel (P) Compatibility Yes
Coating CVD
Hardened (H) Compatibility No
Chip-Breaker Yes
For Use With Walter Tool
Inscribed Circle 0.4720 in
Cutting Direction Right Hand
Item Round Milling Insert
Super Alloy (S) Compatibility No
Mounting Style Screw Held
Grade WKP35S
Workpiece Compatibility Cast Iron (K), Steel (P)
ANSI Number RDMX12T3M0T-A27 WKP35S
Non Ferrous (N) Compatibility No
Insert Shape Round
Rake Positive
Insert Application Roughing
Insert Style RDMX
Stainless (M) Compatibility No
No. of Edges 4
Insert Thickness 0.156"
ISO Number RDMX12T3M0T-A27 WKP35S
Clearance Angle 15 Degrees
Cutting Edge Chamfered
ANSI Code RDMX12T3M0T-A27 WKP35S
Number of Cutting Edges 6
Primary Material Application Cast Iron, Steel
Measurement System Metric
Shape Round
Chip-Breaker Style 0 Degrees Chipbreaker Groove
Material - Machining Carbide
Insert Holding Type Screw Held
Manufacturer Grade WKP35S
Thickness 0.156 in
Chip-Breaker Code A27
Primary Material Application ISO Code K, P
Finish - Machining TiCN+Al2O3+TiCN
Cutting Application Milling
Feed Type High
Coating Process CVD

Description

Round Milling Insert, Inscribed Circle 0.4720 in, Rake Positive
