Shop All Parting & Grooving Inserts
Walter

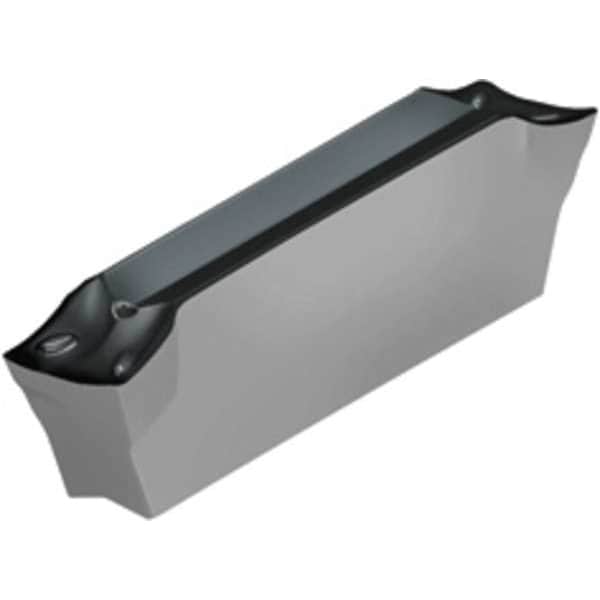

Walter - Insert Walter Cut Form GX

product price: $24.75
/ea
Sold in multiples of 10 for $247.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style Pressed
  • Insert Seat Size E
  • Width 3.00mm
  • Chip-Breaker Yes
  • Grade WSM33S
See all product information

Product Information

Dimensions

Insert Seat Size E
Width 3.00mm
Corner Radius 0.20mm
Insert Size 24
Overall Length 24.60mm
Max. Grooving Width 3.00mm
Reference Length 24.60mm
Seat Size E
Depth of Cut 22.00mm

Details

Item Parting and Grooving Insert
Style Pressed
Chip-Breaker Yes
Grade WSM33S
Cutting Direction Left Hand
Workpiece Compatibility Stainless (M), Steel (P), Super Alloy (S)
Non Ferrous (N) Compatibility No
Mounting Style Slip In
Application Cut Off Low Feed
Hardened (H) Compatibility No
ISO Number GX24-2E300L6-CF6 WSM33S
Insert Material Carbide
Cast Iron (K) Compatibility No
ANSI Number GX24-2E300L6-CF6 WSM33S
No. of Edges 2
Lead Angle 0 Degrees
Steel (P) Compatibility Yes
For Use With Walter Cut Monoblock Tools and Parting Blades
Stainless (M) Compatibility Yes
Super Alloy (S) Compatibility Yes
Rake 19 Degrees
Coating PVD
Insert Style GX
Hole Type No Hole
Primary Material Application ISO Code M, P, S
Cutting Application Cut-Off, Radial Grooving
Material - Machining Carbide
Number of Cutting Sides 2
Number of Cutting Edges 2
Chip-Breaker Code CF6
Cutting Location External
Clearance Angle 6 Degrees
Coating Process PVD
Measurement System Metric
Manufacturer Grade WSM33S
Finish - Machining TiAlN
ANSI Code GX24-2E300L6-CF6 WSM33S
Primary Material Application Nickel, Stainless Steel, Steel, Titanium

Description

Parting and Grooving Insert, Left Hand, Max. Grooving Width 3.00mm, ANSI Code GX24-2E300L6-CF6 WSM33S, Chip-Breaker Code CF6, Clearance Angle 6 Degrees , Coating Process PVD
