  11. Walter - Insert Walter Cut Form GX

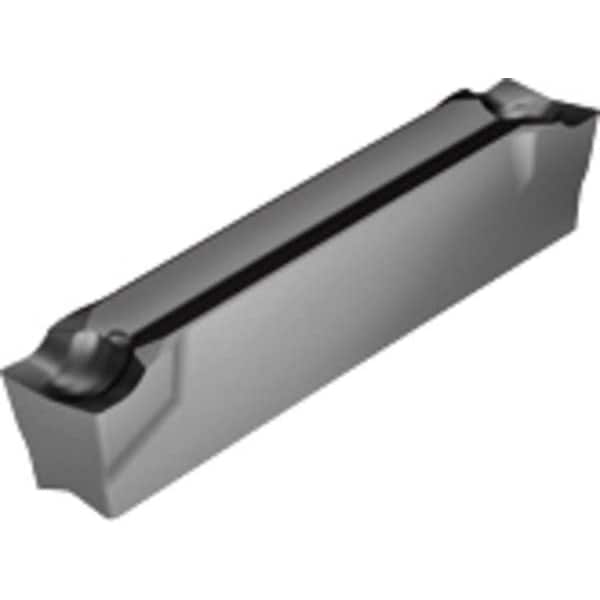

Walter Walter - Insert Walter Cut Form GX GX24-3E400L6-CF5 WSM33S - main

Walter - Insert Walter Cut Form GX

  • Mfr # GX24-3E400L6-CF5 WSM33S

  • Zoro # G9689181

product price: $32.29
/ea
Sold in multiples of 10 for $322.90

Key Features

Style
Pressed
Insert Seat Size
E
Width
4.00mm
Chip-Breaker
Yes
Grade
WSM33S
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX24-3E400L6-CF5 WSM33S
Zoro #
G9689181
UPC #
-
Country of Origin
Germany

Dimensions

Insert Seat Size
E
Width
4.00mm
Corner Radius
0.20mm
Overall Length
24.60mm
Seat Size
E
Max. Grooving Width
4.00mm
Reference Length
24.60mm
Depth of Cut
22.00mm
Insert Size
24

Details

Item
Parting and Grooving Insert
Style
Pressed
Chip-Breaker
Yes
Grade
WSM33S
Cutting Direction
Left Hand
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Application
Cut Off Medium Feed
Insert Material
Carbide
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
Mounting Style
Slip In
For Use With
Walter Cut Monoblock Tools and Parting Blades
Lead Angle
0 Degrees
Cast Iron (K) Compatibility
No
Rake
18 Degrees
ISO Number
GX24-3E400L6-CF5 WSM33S
Non Ferrous (N) Compatibility
No
Coating
PVD
No. of Edges
2
Hardened (H) Compatibility
No
ANSI Number
GX24-3E400L6-CF5 WSM33S
ANSI Code
GX24-3E400L6-CF5 WSM33S
Manufacturer Grade
WSM33S
Coating Process
PVD
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker Code
CF5
Material - Machining
Carbide
Clearance Angle
6 Degrees
Finish - Machining
TiAlN
Primary Material Application ISO Code
M, P, S
Number of Cutting Edges
2
Hole Type
No Hole
Number of Cutting Sides
2
Measurement System
Metric
Cutting Application
Cut-Off, Radial Grooving
Cutting Location
External
Insert Style
GX

Description

Parting and Grooving Insert, Left Hand, Max. Grooving Width 4.00mm, ANSI Code GX24-3E400L6-CF5 WSM33S, Chip-Breaker Code CF5, Clearance Angle 6 Degrees , Coating Process PVD
